LabyREnth CTF 2016 4 Swip3r

Note: For this challenge, we need install some things into our Android 5.1 device with Genymotion. For example, an ARM Translator. https://github.com/m9rco/Genymotion_ARM_Translation

Download APK: https://lautarovculic.com/my_files/c6acf741819c9632cffd12aec0b61aa0dcee0b9f262ccc24262fd8458512c85c Password: infected

Install the apk with adb

adb install -r Swip3r.apk

Then, decompile this with apktool

apktool d Swip3r.apk

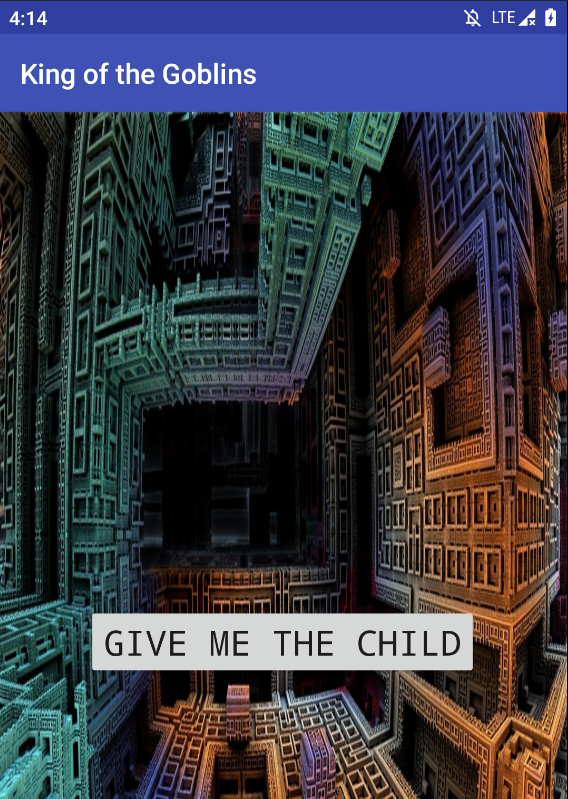

The app crashes when we press the button give me the child. Let's inspect the source code with jadx.

There are two java classes. Pay attention, the MainActivity (Home) is Swip3r, no MainActivity. You can notice this reading the AndroidManifest.xml file

<activity
    android:label="@string/app_name"
    android:name="ru.labyrenth.swiping.swip3r.MainActivity"
    android:parentActivityName="ru.labyrenth.swiping.swip3r.Swip3r"/>
<activity
    android:label="Swip3r"
    android:name="ru.labyrenth.swiping.swip3r.Swip3r">
    <intent-filter>
        <action android:name="android.intent.action.MAIN"/>
        <category android:name="android.intent.category.LAUNCHER"/>
    </intent-filter>
</activity>

The Swip3r class (MainActivity) isn't our interest. We will work with the MainActivity class. This activity loads an native library called swiipiin. We can found this as libswiipiin

lib
└── armeabi
    └── libswiipiin.so
But here I can't find anything.

After inspecting the source code, I notice that the app takes the gestures of the touch screen. This is the onFling method that we need pay attention

public boolean onFling(MotionEvent motionEvent, MotionEvent motionEvent2, float f, float f2) {
        if (motionEvent.getY() - motionEvent2.getY() > 50.0f) {
            ((TextView) findViewById(R.id.startT)).setText("");
            this.a = 0;
            if (this.a == 0 && !this.n) {
                this.p.setImageResource(R.drawable.dbowie_time);
                this.a = 1;
                this.c = 0;
                this.g = 4;
                this.h = 0;
                this.n = true;
                this.d = 9;
            }
            if (!this.n) {
                this.p.setImageResource(R.drawable.dbowie_time);
                this.a = 12;
                this.i = 13;
                this.f = 46;
                this.e = 55;
                this.d = 4;
                ((TextView) findViewById(R.id.wo00ops)).setText(well(this.h, this.j, this.b, this.f, this.l, this.i, this.e, this.k));
            }
            if (this.j == 61441 && this.b == this.l + 12) {
                if (this.k == 45333) {
                    this.l = 8;
                    this.b = (this.b - this.l) - 10;
                }
                ((TextView) findViewById(R.id.wo00ops)).setText(well(this.h, this.j, this.b, this.f, this.l, this.i, this.e, this.k));
            }
        } else if (motionEvent2.getY() - motionEvent.getY() > 50.0f) {
            if (this.c == 1 && this.a == 2) {
                if (this.d == 4) {
                    this.p.setImageResource(R.drawable.dbowie_oops);
                    this.c = 2;
                    this.a = 3;
                    this.f = 62481;
                    this.h = 56;
                    this.i = this.h - 40;
                }
            } else if (this.d == 9) {
                this.a = 10;
                this.n = false;
                this.a = 51;
                this.p.setImageResource(R.drawable.babycry);
                this.m++;
                ((TextView) findViewById(R.id.oops)).setText(String.format("0oo0oopps!: %d", Integer.valueOf(this.m)));
            } else {
                this.p.setImageResource(R.drawable.babycry);
                this.c = 0;
                this.a = 0;
                this.m++;
                ((TextView) findViewById(R.id.oops)).setText(String.format("0oo0oopps!: %d", Integer.valueOf(this.m)));
            }
        } else if (motionEvent.getX() - motionEvent2.getX() > 50.0f) {
            if (this.a != 1 || !this.n) {
                this.p.setImageResource(R.drawable.babycry);
                this.c = 0;
                this.a = 0;
                this.m++;
                ((TextView) findViewById(R.id.oops)).setText(String.format("0oo0oopps!: %d", Integer.valueOf(this.m)));
            } else if (this.g == 4 && this.h == 0) {
                this.p.setImageResource(R.drawable.dbowie_such_a_pity);
                this.c = 1;
                this.a = 2;
                this.l = 7;
                this.d = 4;
            }
        } else if (motionEvent2.getX() - motionEvent.getX() <= 50.0f) {
            this.p.setImageResource(R.drawable.babycry);
            this.m++;
            ((TextView) findViewById(R.id.oops)).setText(String.format("0oo0oopps!: %d", Integer.valueOf(this.m)));
        } else if (this.c == 2 && this.a == 3) {
            if (this.f == 62481) {
                this.j = 61441;
                this.k = 45333;
                this.p.setImageResource(R.drawable.bowiebaby);
                ((TextView) findViewById(R.id.oops)).setText("");
                ((TextView) findViewById(R.id.wo00ops)).setText(a(this.k));
                this.h = 333;
                this.b = 1;
                this.e = this.b + this.h;
                this.b = 19;
            }
        } else if (this.a == 51 || this.l == 7) {
            this.f = 45;
            this.h = 222;
            this.k = 47806;
            ((TextView) findViewById(R.id.wo00ops)).setText(well(this.h, this.j, this.b, this.f, this.l, this.i, this.e, this.k));
        } else {
            this.p.setImageResource(R.drawable.babycry);
            this.c = 0;
            this.a = 0;
            this.f = 9;
            this.m++;
            ((TextView) findViewById(R.id.oops)).setText(String.format("0oo0oopps!: %d", Integer.valueOf(this.m)));
        }
        return true;
    }

This use coordinates and check if the movement is up, down, left or right. According to the correct swipe steps, we will get the flag. After some tries and erros. Reading the source code and the resources folder (res/drawable). I match with the correct pattern and is up, left, down, right, up, left, down, right. I install the apk in my physic test device because the emulator don't take the gestures.

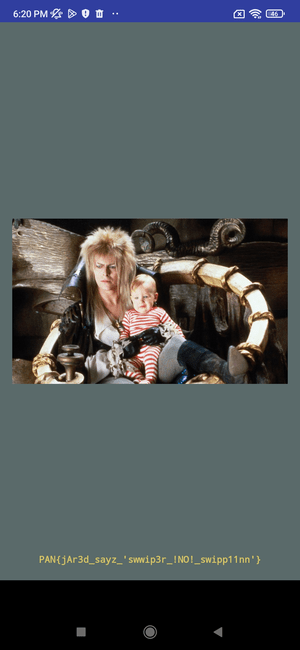

So, after try, I get the flag

Flag: PAN{jAr3d_sayz_'swwip3_!NO!_swipp11nn'}

I hope you found it useful (:
