Jigsaw Hack The Box¶
Difficult: Easy Category: Mobile OS: Android

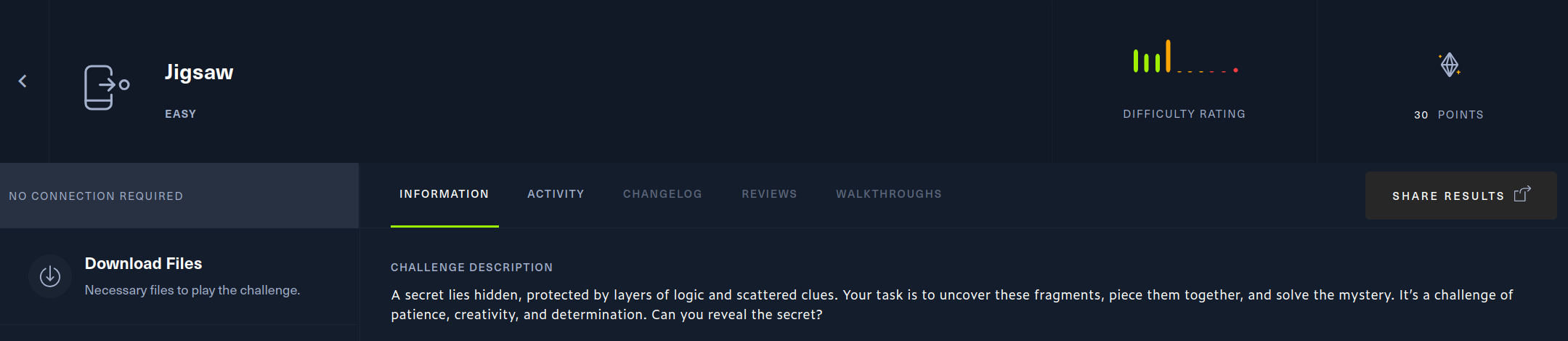

Description: A secret lies hidden, protected by layers of logic and scattered clues. Your task is to uncover these fragments, piece them together, and solve the mystery. It’s a challenge of patience, creativity, and determination. Can you reveal the secret?
Install the APK file using ADB
We can see a login activity. Let's decompile theapk
using apktool Also, we will use JADX for see the source code.
We just have an activity, and some interesting classes.When the app is decompiled, apktool drop us an /assets/flutter_assets
directory. Inside, we have kernel_blob.bin
file. Looking for strings
, we can get the Dart source code of the application.
services.dart
:
import 'dart:ffi';
class AESService {
static const platform = MethodChannel('parttwo');
Future<Map<String, List<int>>> getparttwo() async {
try {
final Map<dynamic, dynamic> result = await platform.invokeMethod('parttwo');
return {
"key": List<int>.from(result['key']),
"iv": List<int>.from(result['iv']),
};
} on PlatformException catch (e) {
print("Failed to get parttwo: '${e.message}'.");
return {};
}
typedef GetAESKeyNative = Pointer<Uint8> Function();
typedef GetAESIVNative = Pointer<Uint8> Function();
class AESNativeLib {
final DynamicLibrary _dylib;
// Private constructor
AESNativeLib._(this._dylib);
// Singleton instance
static AESNativeLib? _instance;
// Load the shared library and return the instance
static AESNativeLib get instance {
_instance ??= AESNativeLib._(DynamicLibrary.open('libmenascyber.so'));
return _instance!;
List<int> getAESKey() {
final getAESKey = _dylib
.lookupFunction<GetAESKeyNative, GetAESKeyNative>('partthree_1');
final keyPointer = getAESKey();
return keyPointer.asTypedList(32);
List<int> getAESIV() {
final getAESIV = _dylib
.lookupFunction<GetAESIVNative, GetAESIVNative>('partthree_2');
final ivPointer = getAESIV();
return ivPointer.asTypedList(16);
class AESCombinedService {
final AESNativeLib _nativeLib = AESNativeLib.instance;
final AESService _aesService = AESService();
// Hardcoded key and IV
final List<int> _hardcodedKey = List<int>.generate(32, (i) => (i + 1) % 256);
final List<int> _hardcodedIV = List<int>.generate(16, (i) => (i + 10) % 256);
// Deterministic shuffling method
List<int> _deterministicShuffle(List<int> input, int shift) {
return List<int>.generate(input.length, (i) {
return input[(i + shift) % input.length];
});
Future<Map<String, List<int>>> partone() async {
// Shuffle the key and IV deterministically
final shuffledKey = _deterministicShuffle(_hardcodedKey, 5);
final shuffledIV = _deterministicShuffle(_hardcodedIV, 3);
return {
"key": shuffledKey,
"iv": shuffledIV,
};
Future<Map<String, List<int>>> getflag() async {
final partoneData = await partone();
final parttwoData = await _aesService.getparttwo();
final partthreeKey = _nativeLib.getAESKey();
final partthreeIV = _nativeLib.getAESIV();
// Combine and slice the key and IV from each part
final combinedKey = [
...partoneData['key']!.sublist(0, 8),
...parttwoData['key']!.sublist(0, 8),
...partthreeKey.sublist(0, 16)
];
final combinedIV = [
...partoneData['iv']!.sublist(0, 4),
...parttwoData['iv']!.sublist(0, 4),
...partthreeIV.sublist(0, 8)
];
return {
"key": combinedKey,
"iv": combinedIV,
};
main.dart
import 'dart:typed_data';
import 'package:encrypt/encrypt.dart' as encrypt;
import 'package:flutter/material.dart';
import 'package:jigsaw/services.dart';
import 'package:ffi/ffi.dart';
import 'package:jigsaw/flag.dart';
void main() {
runApp(MyApp());
class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return MaterialApp(
title: 'Login App',
theme: ThemeData(
primarySwatch: Colors.blue,
),
home: LoginPage(),
);
class LoginPage extends StatefulWidget {
@override
_LoginPageState createState() => _LoginPageState();
class _LoginPageState extends State<LoginPage> {
final TextEditingController _usernameController = TextEditingController();
final TextEditingController _passwordController = TextEditingController();
final AESCombinedService _aesCombinedService = AESCombinedService();
Future<void> fetchAndDecryptFlag() async {
try {
final finallyClass = Finally();
final decryptedFlag = await finallyClass.decryptFlag();
} catch (e) {
}
void _login() {
// Check if the username and password are correct
if (_usernameController.text == 'nimda' && _passwordController.text == 'guessme') {
Navigator.push(
context,
MaterialPageRoute(builder: (context) => HomePage(username: _usernameController.text)),
);
} else {
showDialog(
context: context,
builder: (context) {
return AlertDialog(
title: Text('Login Failed'),
content: Text('Crack me and find the flag'),
actions: [
TextButton(
onPressed: () {
Navigator.of(context).pop();
},
child: Text('OK'),
),
],
);
},
);
}
@override
Widget build(BuildContext context) {
return Scaffold(
body: Container(
decoration: BoxDecoration(
gradient: LinearGradient(
colors: [Colors.blue, Colors.blueAccent],
begin: Alignment.topCenter,
end: Alignment.bottomCenter,
),
),
child: Padding(
padding: const EdgeInsets.all(16.0),
child: Column(
mainAxisAlignment: MainAxisAlignment.center,
children: <Widget>[
Text(
'Welcome Back!',
style: TextStyle(
color: Colors.white,
fontSize: 32,
fontWeight: FontWeight.bold,
),
),
SizedBox(height: 20),
TextField(
controller: _usernameController,
style: TextStyle(color: Colors.white),
decoration: InputDecoration(
labelText: 'Username',
labelStyle: TextStyle(color: Colors.white),
filled: true,
fillColor: Colors.white.withOpacity(0.2),
border: OutlineInputBorder(
borderRadius: BorderRadius.circular(15),
borderSide: BorderSide.none,
),
prefixIcon: Icon(Icons.person, color: Colors.white),
),
),
SizedBox(height: 20),
TextField(
controller: _passwordController,
style: TextStyle(color: Colors.white),
decoration: InputDecoration(
labelText: 'Password',
labelStyle: TextStyle(color: Colors.white),
filled: true,
fillColor: Colors.white.withOpacity(0.2),
border: OutlineInputBorder(
borderRadius: BorderRadius.circular(15),
borderSide: BorderSide.none,
),
prefixIcon: Icon(Icons.lock, color: Colors.white),
),
obscureText: true,
),
SizedBox(height: 20),
ElevatedButton(
onPressed: _login,
style: ElevatedButton.styleFrom(
padding: EdgeInsets.symmetric(horizontal: 60, vertical: 10),
shape: RoundedRectangleBorder(
borderRadius: BorderRadius.circular(15),
),
backgroundColor: Colors.white,
),
child: Text(
'Login',
style: TextStyle(
fontSize: 18,
color: Colors.blueAccent,
),
),
),
],
),
),
),
);
class HomePage extends StatelessWidget {
final String username;
HomePage({required this.username});
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: Text('Home Page'),
),
body: Center(
child: Column(
mainAxisAlignment: MainAxisAlignment.center,
children: [
Image.asset(
'assets/images/laughing.png', // Ensure you have this image in your assets folder
width: 150,
height: 150,
),
SizedBox(height: 20),
Text(
'Sorry, no flag here.',
style: TextStyle(
fontSize: 24,
color: Colors.redAccent,
),
),
],
),
),
);
flag.dart
import 'dart:convert';
import 'dart:typed_data';
import 'package:encrypt/encrypt.dart' as encrypt;
import 'package:jigsaw/services.dart'; // Import the file containing AESCombinedService
class Finally {
final String _encryptedFlagBase64 = 'aZ/KF0GsnN81j5XStQyKz3vXtktTVN5zFqy5lwTmub6fx5w70c+p08O0OWcn/9nh';
Future<String> decryptFlag() async {
final aesService = AESCombinedService();
final flagData = await aesService.getflag();
final encryptedFlagBytes = _base64ToBytes(_encryptedFlagBase64);
final key = Uint8List.fromList(flagData['key']!);
final iv = Uint8List.fromList(flagData['iv']!);
final encryptKey = encrypt.Key(key);
final encryptIV = encrypt.IV(iv);
final encrypter = encrypt.Encrypter(encrypt.AES(encryptKey, mode: encrypt.AESMode.cbc));
final decrypted = encrypter.decrypt(
encrypt.Encrypted.fromBase64(_encryptedFlagBase64),
iv: encryptIV,
);
//return decrypted;
String message = "Developer forgot to uncomment";
return message;
// Helper function to convert base64 string to bytes
List<int> _base64ToBytes(String base64) {
final bytes = base64Decode(base64);
return bytes;
String bytesToHex(Uint8List bytes) {
final buffer = StringBuffer();
for (var byte in bytes) {
buffer.write(byte.toRadixString(16).padLeft(2, '0'));
return buffer.toString();
Also, we can found a native library in
Output:The libmenascyber.so
will be useful in further. For now, let's focus in dart code. Notice in flag.dart
this line:
final String _encryptedFlagBase64 = 'aZ/KF0GsnN81j5XStQyKz3vXtktTVN5zFqy5lwTmub6fx5w70c+p08O0OWcn/9nh';
Part One - Hardcoded Key/IV con Shuffle¶
In services.dart
we have:
final List<int> _hardcodedKey = List<int>.generate(32, (i) => (i + 1) % 256);
final List<int> _hardcodedIV = List<int>.generate(16, (i) => (i + 10) % 256);
_deterministicShuffle(input, shift) => input[(i + shift) % input.length];
partone()
we take: shuffledKey = _deterministicShuffle(_hardcodedKey, 5).sublist(0, 8);
shuffledIV = _deterministicShuffle(_hardcodedIV, 3).sublist(0, 4);
Let's use a python script that take the first part of the key
and iv
.
def deterministic_shuffle(input_list, shift):
return [input_list[(i + shift) % len(input_list)] for i in range(len(input_list))]
hardcoded_key = [(i + 1) % 256 for i in range(32)]
hardcoded_iv = [(i + 10) % 256 for i in range(16)]
# Apply shuffle & cut
key1 = bytes(deterministic_shuffle(hardcoded_key, 5)[:8])
iv1 = bytes(deterministic_shuffle(hardcoded_iv, 3)[:4])
print("key1 =", key1.hex())
print("iv1 =", iv1.hex())
Output:
Fun fact, in main.dart
we have fake creds which are: - nimda
:guessme
Part Two - Flutter Channel & Kotlin Logic¶
Let's move into the source code with JADX. We have the MainActivity.java
, MainActivityKt.java
and piecesOf.kt
. The app implements a MethodChannel
to respond to the “parttwo
” method from Dart:
MainActivty.java
public final class MainActivity extends FlutterActivity {
private final String CHANNEL = "parttwo";
@Override // io.flutter.embedding.android.FlutterActivity, io.flutter.embedding.android.FlutterActivityAndFragmentDelegate.Host, io.flutter.embedding.android.FlutterEngineConfigurator
public void configureFlutterEngine(FlutterEngine flutterEngine) {
Intrinsics.checkNotNullParameter(flutterEngine, "flutterEngine");
super.configureFlutterEngine(flutterEngine);
new MethodChannel(flutterEngine.getDartExecutor().getBinaryMessenger(), this.CHANNEL).setMethodCallHandler(new MethodChannel.MethodCallHandler() { // from class: com.example.menascyber.MainActivity$ExternalSyntheticLambda0
@Override // io.flutter.plugin.common.MethodChannel.MethodCallHandler
public final void onMethodCall(MethodCall methodCall, MethodChannel.Result result) {
MainActivity.configureFlutterEngine$lambda$0(methodCall, result);
}
});
}
/* JADX INFO: Access modifiers changed from: private */
public static final void configureFlutterEngine$lambda$0(MethodCall call, MethodChannel.Result result) {
Map response;
Intrinsics.checkNotNullParameter(call, "call");
Intrinsics.checkNotNullParameter(result, "result");
if (Intrinsics.areEqual(call.method, "parttwo")) {
response = MainActivityKt.get_parttwo();
result.success(response);
} else {
result.notImplemented();
}
}
}
MainActivityKt.java
public final class MainActivityKt {
/* JADX INFO: Access modifiers changed from: private */
public static final Map<String, byte[]> get_parttwo() {
byte[] keyFirst18 = ArraysKt.copyOfRange(piecesOf.INSTANCE.getParttwo_1(), 0, 18);
byte[] ivFirst18 = ArraysKt.copyOfRange(piecesOf.INSTANCE.getParttwo_2(), 0, 7);
return MapsKt.mapOf(TuplesKt.m88to("key", keyFirst18), TuplesKt.m88to("iv", ivFirst18));
}
}
And the most important part: piecesOf.java
public final class piecesOf {
public static final piecesOf INSTANCE;
private static final byte[] oB1;
private static final byte[] oB2;
private static final byte[] parttwo_1;
private static final byte[] parttwo_2;
private static final byte[] xP1;
private static final byte[] xP2;
private piecesOf() {
}
static {
piecesOf piecesof = new piecesOf();
INSTANCE = piecesof;
byte[] bArr = {90, 107, 124, -115, -98, -81, -80, -63, -46, -29, -12, 5, 22, 39, 56, 73};
xP1 = bArr;
byte[] bArr2 = {26, 43, 60, 77, 94, 111, 112, -127, -110, -93, -76, -59, -42, -25, -8, 9};
xP2 = bArr2;
byte[] bArr3 = {96, Base64.padSymbol, -21, 16, 21, -54, 113, -66, 43, 115, -82, -16, -123, 125, 119, -127, 31, 53, 44, 7, 59, 97, 8, -41, 45, -104, 16, -93, 9, 20, -33, -12};
oB1 = bArr3;
byte[] bArr4 = {-96, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15};
oB2 = bArr4;
parttwo_1 = piecesof.m48tB(bArr3, bArr);
parttwo_2 = piecesof.m48tB(bArr4, bArr2);
}
/* renamed from: rR */
private final byte m47rR(byte v, int c) {
return (byte) ((v >> c) | (v << (8 - c)));
}
/* renamed from: tB */
private final byte[] m48tB(byte[] i, byte[] p) {
int length = i.length;
byte[] bArr = new byte[length];
for (int i2 = 0; i2 < length; i2++) {
bArr[i2] = INSTANCE.m47rR((byte) (i[i2] ^ p[i2 % p.length]), 3);
}
return bArr;
}
public final byte[] getParttwo_1() {
return parttwo_1;
}
public final byte[] getParttwo_2() {
return parttwo_2;
}
public final String bytesToHex(byte[] bytes) {
Intrinsics.checkNotNullParameter(bytes, "bytes");
return ArraysKt.joinToString$default(bytes, (CharSequence) "", (CharSequence) null, (CharSequence) null, 0, (CharSequence) null, (Function1) new Function1<Byte, CharSequence>() { // from class: com.example.menascyber.piecesOf$bytesToHex$1
public final CharSequence invoke(byte it) {
StringCompanionObject stringCompanionObject = StringCompanionObject.INSTANCE;
String format = String.format("%02x", Arrays.copyOf(new Object[]{Byte.valueOf(it)}, 1));
Intrinsics.checkNotNullExpressionValue(format, "format(format, *args)");
return format;
}
@Override // kotlin.jvm.functions.Function1
public /* bridge */ /* synthetic */ CharSequence invoke(Byte b) {
return invoke(b.byteValue());
}
}, 30, (Object) null);
}
}
The tB()
function performs XOR between two arrays and then applies 3-bit right rotation on each byte:
/* renamed from: rR */
private final byte m47rR(byte v, int c) {
return (byte) ((v >> c) | (v << (8 - c)));
}
/* renamed from: tB */
private final byte[] m48tB(byte[] i, byte[] p) {
int length = i.length;
byte[] bArr = new byte[length];
for (int i2 = 0; i2 < length; i2++) {
bArr[i2] = INSTANCE.m47rR((byte) (i[i2] ^ p[i2 % p.length]), 3);
}
return bArr;
}
xP1 = new byte[]{90, 107, 124, -115, -98, -81, -80, -63, -46, -29, -12, 5, 22, 39, 56, 73};
oB1 = new byte[]{96, 61, -21, 16, 21, -54, 113, -66, 43, 115, -82, -16, -123, 125, 119, -127, 31, 53, 44, 7, 59, 97, 8, -41, 45, -104, 16, -93, 9, 20, -33, -12};
xP2 = new byte[]{26, 43, 60, 77, 94, 111, 112, -127, -110, -93, -76, -59, -42, -25, -8, 9};
oB2 = new byte[]{-96, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15};
We can simplify this process using a python script:
def rotate_right(val, n):
return ((val >> n) | ((val << (8 - n)) & 0xFF)) & 0xFF
def tB(oB, xP):
return bytes([rotate_right(oB[i] ^ xP[i % len(xP)], 3) for i in range(len(oB))])
# data
oB1 = bytes([
96, 61, 235, 16, 21, 202, 113, 190,
43, 115, 174, 240, 133, 125, 119, 129,
31, 53, 44, 7, 59, 97, 8, 215,
45, 152, 16, 163, 9, 20, 223, 244
])
xP1 = bytes([
90, 107, 124, 141, 158, 175, 176, 193,
210, 227, 244, 5, 22, 39, 56, 73
])
oB2 = bytes([
160, 1, 2, 3, 4, 5, 6, 7,
8, 9, 10, 11, 12, 13, 14, 15
])
xP2 = bytes([
26, 43, 60, 77, 94, 111, 112, 129,
146, 163, 180, 197, 214, 231, 248, 9
])
# Apply XOR + ROTR (randFunc2)
parttwo_1 = tB(oB1, xP1)
parttwo_2 = tB(oB2, xP2)
# slicing
key2 = parttwo_1[:8]
iv2 = parttwo_2[:4]
print("key2 =", key2.hex())
print("iv2 =", iv2.hex())
Output:
Part Three - Dump with Frida from libs¶
Open ghidra and import the libmenascyber.so
library. Then, analyze. We can see the functions that we need for complete the IV and key: - partthree_1()
=> returns 32 bytes (key) - partthree_2()
=> returns 16 bytes (IV) These bytes are also derived with randFunc2
based on hardcoded data within the binary.
Let's dump the value using FRIDA. For this, I develop this script:
const lib = Module.findBaseAddress("libmenascyber.so");
function dump(name, size) {
const fn = Module.findExportByName("libmenascyber.so", name);
const ptr = new NativeFunction(fn, "pointer", [])();
console.log(name, hexdump(ptr, { length: size, header: false }));
}
dump("partthree_1", 16);
dump("partthree_2", 8);
Run in interactive mode after frida -U "Jigsaw"
command and the output is:
[KEY] Dumped:
0 1 2 3 4 5 6 7 8 9 A B C D E F 0123456789ABCDEF
79b02fab60 0b 4d cf d1 53 55 d6 d8 5b 5d df c1 43 45 c6 c8 .M..SU..[]..CE..
79b02fab70 49 4f cd d3 51 57 d4 da 03 23 43 63 83 a3 c3 e3 IO..QW...#Cc....
[KEY 32B] 0 1 2 3 4 5 6 7 8 9 A B C D E F 0123456789ABCDEF
79b02fab60 0b 4d cf d1 53 55 d6 d8 5b 5d df c1 43 45 c6 c8 .M..SU..[]..CE..
79b02fab70 49 4f cd d3 51 57 d4 da 03 23 43 63 83 a3 c3 e3 IO..QW...#Cc....
partthree_1 79b02fab60 0b 4d cf d1 53 55 d6 d8 5b 5d df c1 43 45 c6 c8 .M..SU..[]..CE..
[IV] Dumped:
0 1 2 3 4 5 6 7 8 9 A B C D E F 0123456789ABCDEF
79b02fab80 57 51 d3 dd 5f 59 da c4 47 41 c3 cd 4f 49 ca d4 WQ.._Y..GA..OI..
[IV 16B] 0 1 2 3 4 5 6 7 8 9 A B C D E F 0123456789ABCDEF
79b02fab80 57 51 d3 dd 5f 59 da c4 47 41 c3 cd 4f 49 ca d4 WQ.._Y..GA..OI..
partthree_2 79b02fab80 57 51 d3 dd 5f 59 da c4 WQ.._Y..
So, the key3
and iv3
is 0b4dcfd15355d6d85b5ddfc14345c6c8
and 5751d3dd5f59dac4
respectively.
Final key
and IV
:
aZ/KF0GsnN81j5XStQyKz3vXtktTVN5zFqy5lwTmub6fx5w70c+p08O0OWcn/9nh
We can put all together and decrypt using python:
from Crypto.Cipher import AES
from Crypto.Util.Padding import unpad
import base64
# keys
key = bytes([
# partone (first 8 bytes)
0x06, 0x07, 0x08, 0x09, 0x0a, 0x0b, 0x0c, 0x0d,
# parttwo1 (using rot_r3 + signed handling)
0x47, 0xca, 0xf2, 0xf3, 0xf1, 0xac, 0xf8, 0xef,
# partthree1 (dumped from frida)
0x0b, 0x4d, 0xcf, 0xd1, 0x53, 0x55, 0xd6, 0xd8,
0x5b, 0x5d, 0xdf, 0xc1, 0x43, 0x45, 0xc6, 0xc8
])
iv = bytes([
# partone IV
0x0d, 0x0e, 0x0f, 0x10,
# parttwo2 (calculated)
0xf7, 0x45, 0xc7, 0xc9,
# partthree2 (dump from frida)
0x57, 0x51, 0xd3, 0xdd, 0x5f, 0x59, 0xda, 0xc4
])
# flag
enc_b64 = 'aZ/KF0GsnN81j5XStQyKz3vXtktTVN5zFqy5lwTmub6fx5w70c+p08O0OWcn/9nh'
ciphertext = base64.b64decode(enc_b64)
# decrypt
cipher = AES.new(key, AES.MODE_CBC, iv)
plaintext = cipher.decrypt(ciphertext)
flag = unpad(plaintext, 16)
print(flag.decode())
Flag: HTB{It's_great_to_puzzle_the_pieces}
I hope you found it useful (:
