Google CTF 2016 Ill Intentions¶

Note: For this challenge, we need install some things into our Android 5.1 device with Genymotion. For example, an ARM Translator. https://github.com/m9rco/Genymotion_ARM_Translation

Download APK: https://lautarovculic.com/my_files/illintentions.apk

Install the apk with adb

adb install -r illintentions.apk

Let's decompile the content with apktool.

apktool d illintentions.apk

And let's check the source code with jadx (GUI version) We can see that the package name is com.example.hellojni

So, after read the code some minutes, we have the MainActivity

public class MainActivity extends Activity {
    @Override // android.app.Activity
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        TextView tv = new TextView(getApplicationContext());

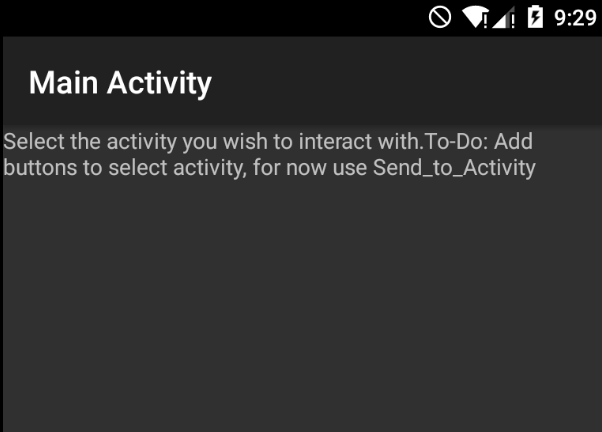

        tv.setText("Select the activity you wish to interact with.To-Do: Add buttons to select activity, for now use Send_to_Activity");
        setContentView(tv);
        IntentFilter filter = new IntentFilter();
        filter.addAction("com.ctf.INCOMING_INTENT");
        BroadcastReceiver receiver = new Send_to_Activity();
        registerReceiver(receiver, filter, Manifest.permission._MSG, null);
    }
}

Here we can see an intent.

We have a broadcast receiver in Send_to_Activity

public class Send_to_Activity extends BroadcastReceiver {
    @Override // android.content.BroadcastReceiver
    public void onReceive(Context context, Intent intent) {
        String msgText = intent.getStringExtra("msg");
        if (msgText.equalsIgnoreCase("ThisIsTheRealOne")) {
            Intent outIntent = new Intent(context, (Class<?>) ThisIsTheRealOne.class);
            context.startActivity(outIntent);
        } else if (msgText.equalsIgnoreCase("IsThisTheRealOne")) {
            Intent outIntent2 = new Intent(context, (Class<?>) IsThisTheRealOne.class);
            context.startActivity(outIntent2);
        } else if (msgText.equalsIgnoreCase("DefinitelyNotThisOne")) {
            Intent outIntent3 = new Intent(context, (Class<?>) DefinitelyNotThisOne.class);
            context.startActivity(outIntent3);
        } else {
            Toast.makeText(context, "Which Activity do you wish to interact with?", 1).show();
        }
    }
}

The ThisIsTheRealOne class

id=__span-4-1>public class ThisIsTheRealOne extends Activity { public native String computeFlag(String str, String str2); public native String definitelyNotThis(String str, String str2, String str3); public native String orThat(String str, String str2, String str3); public native String perhapsThis(String str, String str2, String str3); @Override // android.app.Activity public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); TextView tv = new TextView(this); tv.setText("Activity - This Is The Real One"); Button button = new Button(this); button.setText("Broadcast Intent"); setContentView(button); button.setOnClickListener(new View.OnClickListener() { // from class: com.example.application.ThisIsTheRealOne.1 @Override // android.view.View.OnClickListener public void onClick(View v) { Intent intent = new Intent(); intent.setAction("com.ctf.OUTGOING_INTENT"); String a = ThisIsTheRealOne.this.getResources().getString(R.string.str2) + "YSmks"; String b = Utilities.doBoth(ThisIsTheRealOne.this.getResources().getString(R.string.dev_name)); String c = Utilities.doBoth(getClass().getName()); intent.putExtra("msg", ThisIsTheRealOne.this.orThat(a, b, c)); ThisIsTheRealOne.this.sendBroadcast(intent, Manifest.permission._MSG); } }); } static { System.loadLibrary("hello-jni"); } class=p>}

The IsThisTheRealOne

public class IsThisTheRealOne extends Activity {
    public native String computeFlag(String str, String str2);

    public native String definitelyNotThis(String str, String str2, String str3);

    public native String orThat(String str, String str2, String str3);

    public native String perhapsThis(String str, String str2, String str3);

    @Override // android.app.Activity
    public void onCreate(Bundle savedInstanceState) {
        getApplicationContext();
        super.onCreate(savedInstanceState);
        TextView tv = new TextView(this);
        tv.setText("Activity - Is_this_the_real_one");
        Button button = new Button(this);
        button.setText("Broadcast Intent");
        setContentView(button);
        button.setOnClickListener(new View.OnClickListener() { // from class: com.example.application.IsThisTheRealOne.1
            @Override // android.view.View.OnClickListener
            public void onClick(View v) {
                Intent intent = new Intent();
                intent.setAction("com.ctf.OUTGOING_INTENT");
                String a = IsThisTheRealOne.this.getResources().getString(R.string.str3) + "\\VlphgQbwvj~HuDgaeTzuSt.@Lex^~";
                String b = Utilities.doBoth(IsThisTheRealOne.this.getResources().getString(R.string.app_name));
                String name = getClass().getName();
                String c = Utilities.doBoth(name.substring(0, name.length() - 2));
                intent.putExtra("msg", IsThisTheRealOne.this.perhapsThis(a, b, c));
                IsThisTheRealOne.this.sendBroadcast(intent, Manifest.permission._MSG);
            }
        });
    }

    static {
        System.loadLibrary("hello-jni");
    }
}

And the DefinitelyNotThisOne

public class DefinitelyNotThisOne extends Activity {
    public native String computeFlag(String str, String str2);

    public native String definitelyNotThis(String str, String str2);

    public native String orThat(String str, String str2, String str3);

    public native String perhapsThis(String str, String str2, String str3);

    @Override // android.app.Activity
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        TextView tv = new TextView(this);
        tv.setText("Activity - Is_this_the_real_one");
        Button button = new Button(this);
        button.setText("Broadcast Intent");
        setContentView(button);
        button.setOnClickListener(new View.OnClickListener() { // from class: com.example.application.DefinitelyNotThisOne.1
            @Override // android.view.View.OnClickListener
            public void onClick(View v) {
                Intent intent = new Intent();
                intent.setAction("com.ctf.OUTGOING_INTENT");
                DefinitelyNotThisOne.this.getResources().getString(R.string.str1);
                String b = Utilities.doBoth(DefinitelyNotThisOne.this.getResources().getString(R.string.test));
                String c = Utilities.doBoth("Test");
                intent.putExtra("msg", DefinitelyNotThisOne.this.definitelyNotThis(b, c));
                DefinitelyNotThisOne.this.sendBroadcast(intent, Manifest.permission._MSG);
            }
        });
    }

    static {
        System.loadLibrary("hello-jni");
    }
}

The Utilities class is for decrypt the strings in strings.xml resource file

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <string name="res_0x7f030000_android_permission__msg">Msg permission for this app</string>
    <string name="app_name">SendAnIntentApplication</string>
    <string name="dev_name">Leetdev</string>
    <string name="flag">Qvq lbh guvax vg jbhyq or gung rnfl?</string>
    <string name="git_user">l33tdev42</string>
    <string name="str1">`wTtqnVfxfLtxKB}YWFqqnXaOIck`</string>
    <string name="str2">IIjsWa}iy</string>
    <string name="str3">TRytfrgooq|F{i-JovFBungFk</string>
    <string name="str4">H0l3kwjo1|+kdl^polr</string>
    <string name="test">Test String for debugging</string>
</resources>

I don't want waste my time with the lib native libhello-jni.so So, I decide create my own app that send the broadcast to the target app. But, before, we need change this in the AndroidManifest.xml file of the illintentions.apk

<permission
        android:name="ctf.permission._MSG"
        android:protectionLevel="signature"
        android:description="@string/res_0x7f030000_android_permission__msg"/>
</permission>

We just can rename signature for normal (or just delete the permission).

Why? Because the is protected and if we don't change this, the intent will not sent and our app will get a message like

W/BroadcastQueue(  544): Permission Denial: broadcasting Intent { act=com.ctf.INCOMING_INTENT flg=0x10 (has extras) } from illintentions.solve (pid=14364, uid=10095) requires ctf.permission._MSG due to registered receiver BroadcastFilter{265bee3c u0 ReceiverList{33c9b82f 14191 com.example.hellojni/10098/u0 remote:2317760e}}

So change signature to normal and save the AndroidManifest.xml file Then, rebuild the apk with apktool

apktool b illintentions

Generate a key

keytool -genkey -v -keystore name.keystore -keyalg RSA -keysize 2048 -validity 10000 -alias alias

Then, sign the apk

jarsigner -verbose -sigalg SHA1withRSA -digestalg SHA1 -keystore name.keystore illintentions/dist/illintentions.apk alias

Uninstall the original apk from the device and install the new apk

adb install -r illintentions/dist/illintentions.apk

So, now we need create our receiver. The files MainActivity.java

package illintentions.solve;

import android.app.Activity;
import android.os.Bundle;

public class MainActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
    }
}

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent">
</RelativeLayout>

Create a java class for receive the intent Receiver.java

package illintentions.solve;

import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.util.Log;

public class Receiver extends BroadcastReceiver {
    private static final String TAG = "Receiver";
    @Override
    public void onReceive(Context context, Intent intent ) {
        String message = intent.getStringExtra("msg");
        Log.d(TAG, "BROADCAST FOUND:");
        Log.d(TAG, "Message: "+message);
    }
}

And the AndroidManifest.xml of our app looks like

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="illintentions.solve">
    <uses-permission android:name="ctf.permission._MSG" />

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:supportsRtl="true"
        android:theme="@style/Theme.AppCompat.Light.NoActionBar">
        <activity android:name=".MainActivity"
            android:exported="true">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
        <receiver  android:name="Receiver"
            android:enabled="true"
            android:exported="true" >
            <intent-filter>
                <action android:name="com.ctf.OUTGOING_INTENT"/>
            </intent-filter>
        </receiver>
    </application>
</manifest>

So, compile our app. And wait until this is executed. When is executed, we can call the activities with adb of the target app. We can use am (activity manager) for sent a broadcast with adb.

Run logcat for get the message logs

adb logcat -c && adb logcat

And in another terminal, run

adb shell am broadcast -a com.ctf.INCOMING_INTENT -e "msg" "DefinitelyNotThisOne"

Press the BROADCAST INTENT button in the target app and: Output: Message: Told you so!

Let's try with another activity

adb shell am broadcast -a com.ctf.INCOMING_INTENT -e "msg" "ThisIsTheRealOne"

Output: Message: KeepTryingThisIsNotTheActivityYouAreLookingForButHereHaveSomeInternetPoints!

So the last

adb shell am broadcast -a com.ctf.INCOMING_INTENT -e "msg" "IsThisTheRealOne"

Output: Message: Congratulation!YouFoundTheRightActivityHereYouGo-CTF{IDontHaveABadjokeSorry}

We get the flag CTF{IDontHaveABadjokeSorry}

I hope you found it useful (:
