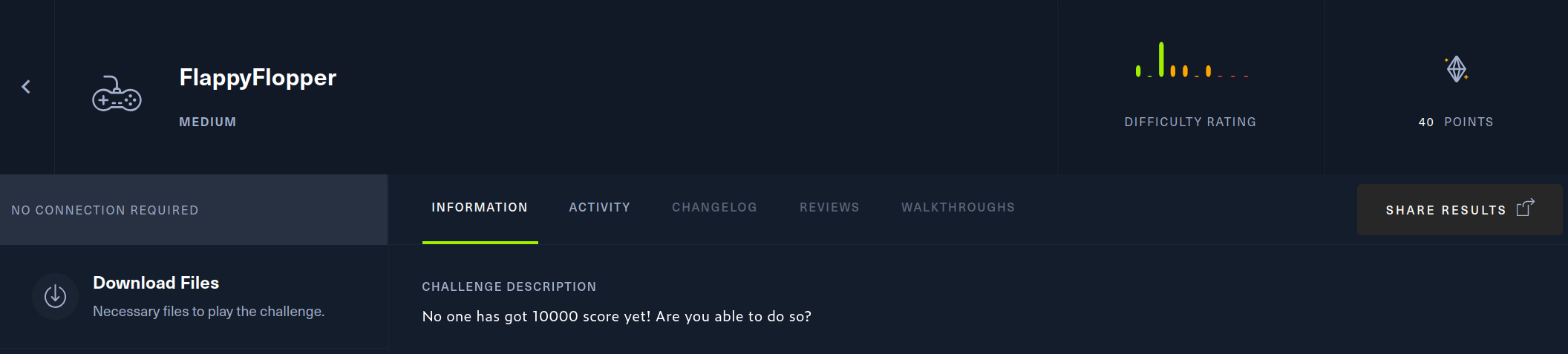

FlappyFlopper Hack The Box¶
Difficult: Medium
Category: GamePwn
OS: Android
Description: No one has got 10000 score yet! Are you able to do so?
Download and extract the .zip file with hackthebox as password.
Install the .apk file using ADB
We can see that this is the kind of famous Flappy Bird game. Our goal is get 10000 points!
Recon¶
Let's analyze the source code. For that, we'll use JADX!
Looking in the AndroidManifest.xml file we can see the package name, which is com.apuf.flapyfloper.
Quickly, we can see the MainActivity in the .xml file:
<activity
android:theme="@style/UnityThemeSelector"
android:name="com.unity3d.player.UnityPlayerActivity"
android:enabled="true"
android:exported="true"
android:launchMode="singleTask"
android:screenOrientation="portrait"
android:configChanges="fontScale|layoutDirection|density|smallestScreenSize|screenSize|uiMode|screenLayout|orientation|navigation|keyboardHidden|keyboard|touchscreen|locale|mnc|mcc"
android:hardwareAccelerated="false"
android:resizeableActivity="false">
<intent-filter>
<category android:name="android.intent.category.LAUNCHER"/>
<category android:name="android.intent.category.LEANBACK_LAUNCHER"/>
<action android:name="android.intent.action.MAIN"/>
</intent-filter>
<meta-data
android:name="unityplayer.UnityActivity"
android:value="true"/>
<meta-data
android:name="notch_support"
android:value="true"/>
</activity>
Notice that the class name is UnityPlayerActivity. So, we are reversing an Unity game!
Let's decompile the application using apktool:
Inside we can found the assets directory, which have the following content:
assets
├── available_features.json
├── available.tflite
├── bin
│ └── Data
│ ├── boot.config
│ ├── data.unity3d
│ ├── Managed
│ │ ├── Metadata
│ │ │ └── global-metadata.dat
│ │ └── Resources
│ │ ├── mscorlib.dll-resources.dat
│ │ └── System.Data.dll-resources.dat
│ ├── Resources
│ │ └── unity default resources
│ ├── RuntimeInitializeOnLoads.json
│ ├── ScriptingAssemblies.json
│ └── unity_app_guid
├── oom_features.json
├── oom.tflite
├── realtime_features.json
├── realtime.tflite
└── unity_obb_guid
And the libraries:
Looks like we'll have to work with IL2CPP!
But, what's IL2CPP?
Definition:
IL2CPP (Intermediate Language To C++) is a scripting backend developed by Unity, serving as an alternative to the Mono backend. Its primary function is to enhance the performance, security, and platform compatibility of Unity projects, particularly when deploying to a wide range of platforms.
So, where the information of our interest is located?
In the assets/bin/Data/Managed/Metadata directory, we can see the global-metadata.dat file contains the class, methods and fields.
Also ScriptingAssemblies.json confirms Assembly-CSharp as the game container.
By the way, we can enumerate which custom class are using in the app using Frida!
We can hook at a high level with the bridge (methods/fields) or go all out using the native method's VA. I chose the latter for maximum robustness.
Fortunately, there are geniuses who have already made our job easier, we can find it in this repository: - https://github.com/vfsfitvnm/frida-il2cpp-bridge
Install with npm
Let's search the bridge script: This will drop a path with the script that we need use for hooking, in my case: -/home/lautaro/.nvm/versions/node/v20.18.2/lib/node_modules/frida-il2cpp-bridge/dist/index.js So, I develop a frida script that discover the Classes, Methods and Fields:
// check this before https://github.com/vfsfitvnm/frida-il2cpp-bridge
// enumerate class and methods for Unity games
// discover.js — use global Il2Cpp from bridge (no require)
'use strict';
const wait = ms => new Promise(r => setTimeout(r, ms));
(async () => {
while (!Module.findBaseAddress('libil2cpp.so')) await wait(100);
Il2Cpp.perform(() => {
const asm = Il2Cpp.domain.assembly('Assembly-CSharp');
if (!asm) { console.log('[-] Assembly-CSharp not loaded yet'); return; }
const img = asm.image;
const CLASS_RX = /(score|game|bird|pipe|spawner|manager|hud|ui)/i;
const FIELD_RX = /(score|points|high.?score|best.?score)/i;
const METH_RX = /(add|set|increase).*score|onpass|gameover|die|ontriggerenter2d|oncollisionenter2d|update/i;
for (const k of img.classes) {
if (!CLASS_RX.test(k.name)) continue;
const fields = [];
for (const f of k.fields) {
try {
if (FIELD_RX.test(f.name || '')) {
fields.push(`${f.isStatic ? 'static ' : ''}${f.type?.name || '?'} ${f.name}`);
}
} catch (_) {}
}
const methods = [];
for (const m of k.methods) {
try {
if (METH_RX.test(m.name)) {
const sig = `${m.returnType?.name || 'void'} ${k.name}::${m.name}(${m.parameters.map(p => p.type?.name || '?').join(', ')})`;
methods.push(sig);
}
} catch (_) {}
}
if (fields.length || methods.length) {
console.log(`\n[CLASS] ${k.name}`);
if (fields.length) console.log(' Fields:\n - ' + fields.join('\n - '));
if (methods.length) console.log(' Methods:\n - ' + methods.join('\n - '));
}
}
});
})();
I'll set to a variable BRIDGE the previous path:
BRIDGE="/home/lautaro/.nvm/versions/node/v20.18.2/lib/node_modules/frida-il2cpp-bridge/dist/index.js"
So, put running frida server in your phone and then, run the following frida command in your client (PC):
Output:[CLASS] BirdControl
Fields:
- Score scoreText
Methods:
- System.Void BirdControl::Update()
- System.Void BirdControl::OnTriggerEnter2D(UnityEngine.Collider2D)
- System.Void BirdControl::GameOver()
[CLASS] GameMain
Methods:
- System.Void GameMain::Update()
[CLASS] PipeMove
Methods:
- System.Void PipeMove::Update()
- System.Void PipeMove::GameOver()
[CLASS] PipeSpawner
Methods:
- System.Void PipeSpawner::GameOver()
[CLASS] Score
Fields:
- UnityEngine.UI.Text scoreText
- System.Int32 score
Methods:
- System.Void Score::UpdateScoreText()
This is really interesting!
We can see the functions and classes that interest us most.
We will focus in:
[CLASS] Score
Fields:
- UnityEngine.UI.Text scoreText
- System.Int32 score
Methods:
- System.Void Score::UpdateScoreText()
ARM64, x0 is this → writing this + offset(score) before the body ensures that the game code itself renders the forced value. Avoid dealing with UI overloads (Text/TMP_Text) and trigger timing.
But before, what is VA?
VA = Virtual Address: The absolute virtual address (post-ASLR) of the method's native entry point within the process. In Unity IL2CPP, every C# method ends as a native function.
The bridge (frida-il2cpp-bridge) gives you that VA with method.virtualAddress so you can Interceptor.attach(va, ...) to it.
RVA is the offset relative to the base of libil2cpp.so. The bridge resolves both from MethodInfo/FieldInfo using global-metadata.dat.
How does bridge “resolve” it?
It uses il2cpp's APIs/structures and metadata (global-metadata.dat) to map: domain → assemblies → images → classes → methods/fields.
From each MethodInfo, it obtains the code pointer (VA) and from each FieldInfo, the offset within the object.
This is why we were able to: read fScore.offset, and hook mUpd.virtualAddress.
Solution¶

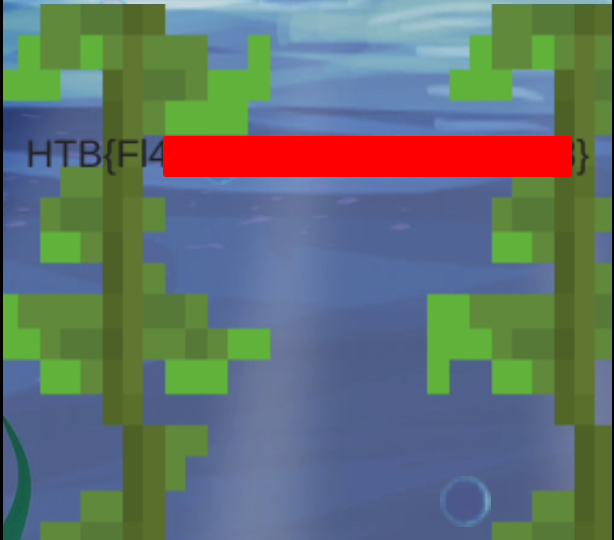

So I hooked the VA and, on ARM64 where x0 is this, I wrote this+offset = 10000. When the method was executed, the UI itself took the already patched value and displayed the manipulated score.
// native score
'use strict';
const wait = ms => new Promise(r => setTimeout(r, ms));
(async () => {
while (!Module.findBaseAddress('libil2cpp.so')) await wait(100);
Il2Cpp.perform(() => {
const img = Il2Cpp.domain.assembly('Assembly-CSharp').image;
const Score = img.class('Score');
const fScore = Score.field('score');
const mUpd = Score.method('UpdateScoreText');
const addr = mUpd.virtualAddress;
if (!addr) { console.log('no UpdateScoreText'); return; }
// x0 = this
Interceptor.attach(addr, {
onEnter(args) {
try {
const self = args[0];
self.add(fScore.offset).writeS32(10000); // set score
} catch (_) {}
}
});
console.log('hook');
});
})();
So, run again the Frida command but now with hook.js
I hope you found it useful (:
