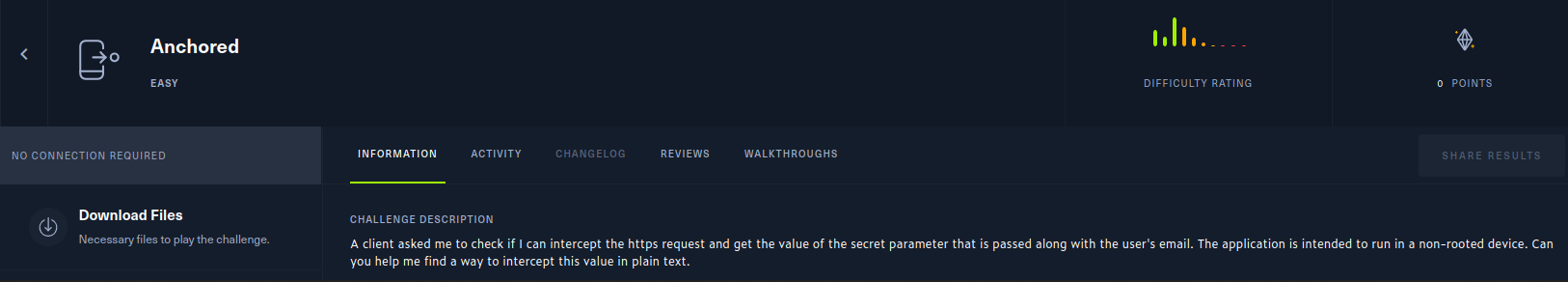

Anchored – Hack The Box¶

Difficult: Easy Category: Mobile OS: Android

Description: A client asked me to check if I can intercept the https request and get the value of the secret parameter that is passed along with the user’s email. The application is intended to run in a non-rooted device. Can you help me find a way to intercept this value in plain text.

Download and extract the zip file with the password hackthebox. Inside, we can see a README.txt file that say

1. Install this application in an API Level 29 or earlier (i.e. Android 10.0 (Google Play)).
2. Install this application in a non-rooted device (i.e. In Android Studio AVD Manager select an image that includes (Google Play)).

With Android Studio configured and the non-root deviced working, let’s extract the apk with apktool

apktool d Anchored.apk

And install with adb

adb install -r Anchored.apk

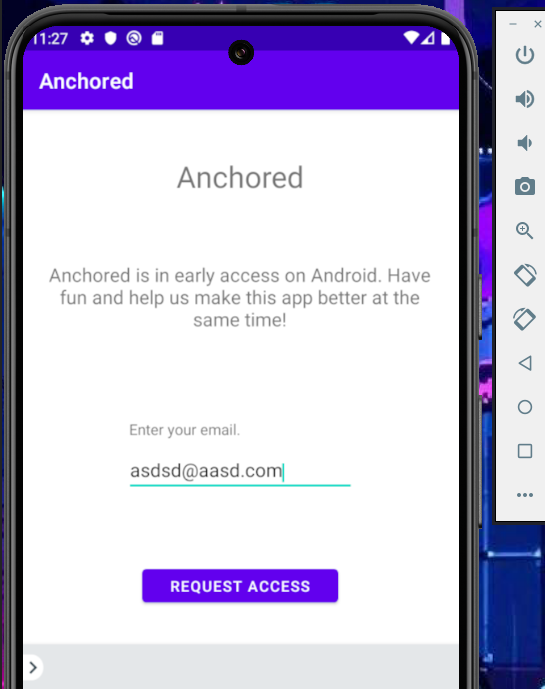

We can see the app

Let’s inspect the content of the Anchored folder In the AndroidManifest.xml file, we can see

android:networkSecurityConfig="@xml/network_security_config"

Looking the file network_security_config.xml

<?xml version="1.0" encoding="utf-8"?>
<network-security-config>
    <domain-config cleartextTrafficPermitted="false">
        <domain includeSubdomains="true">anchored.com</domain>
        <trust-anchors>
            <certificates src="@raw/certificate" />
        </trust-anchors>
    </domain-config>
</network-security-config>

We can see the trusted certificates, that is in /Anchored/raw/certificate This certificate is for trust in anchored.com

.rw-r--r-- lautaro lautaro 1.3 KB Mon May 27 06:30:11 2024 󰌆 certificate.pem

We need intercept the traffic and, for it, we need install the Burp cert And, reading about Documentation https://developer.android.com/privacy-and-security/security-config

If we include

<certificates src="user" />

In the network_security_config.xml file, this will trust in any cert that the user install in the device.

Then, add the line to the code

<?xml version="1.0" encoding="utf-8"?>
<network-security-config>
    <domain-config cleartextTrafficPermitted="false">
        <domain includeSubdomains="true">anchored.com</domain>
        <trust-anchors>
                <certificates src="user" />
            <certificates src="@raw/certificate" />
        </trust-anchors>
    </domain-config>
</network-security-config>

Now we need recompile the application with apktool

apktool b Anchored

And

cd Anchored/dist

It’s time for gen a key

keytool -genkey -keystore lautaro.keystore -validity 1000 -alias lautaro

Now we need sign the apk

jarsigner -keystore lautaro.keystore -verbose Anchored.apk lautaro

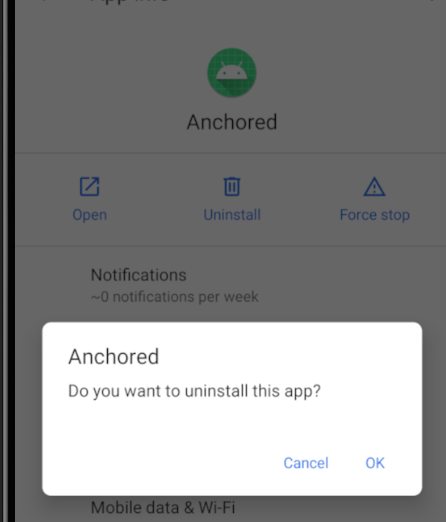

Now we need remove the apk previously installed

And install the new apk

adb install -r Anchored.apk

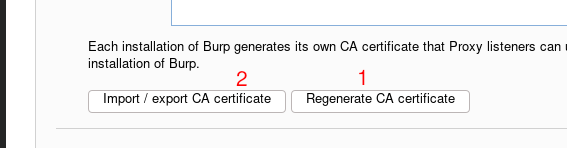

Now it’s time of install Burpsuite cert Regenerate and export a new cert

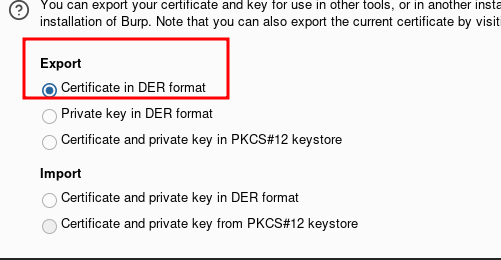

Select in DER format

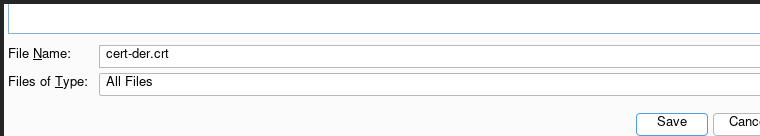

And save the cert

Now we need upload the cert to the emulator

adb push cert-der.crt /sdcard/Download/

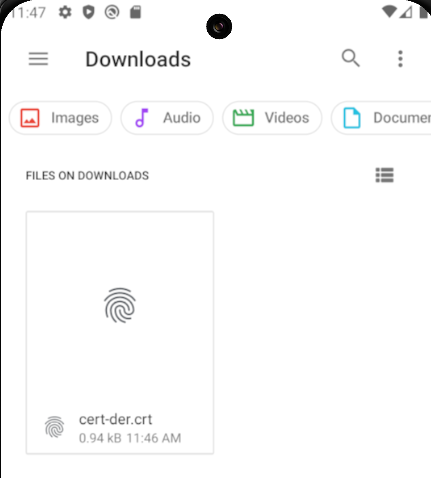

Go to Downloads on Files app

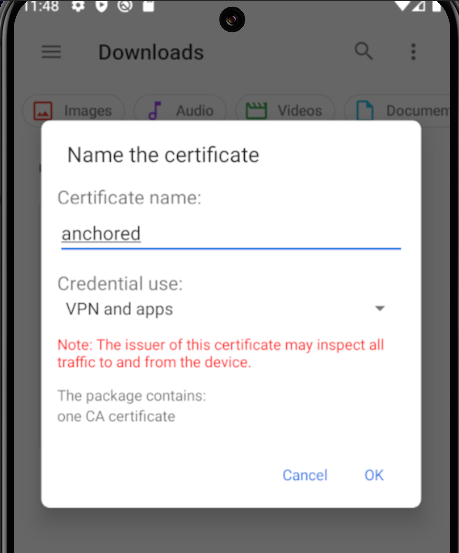

And install the cert

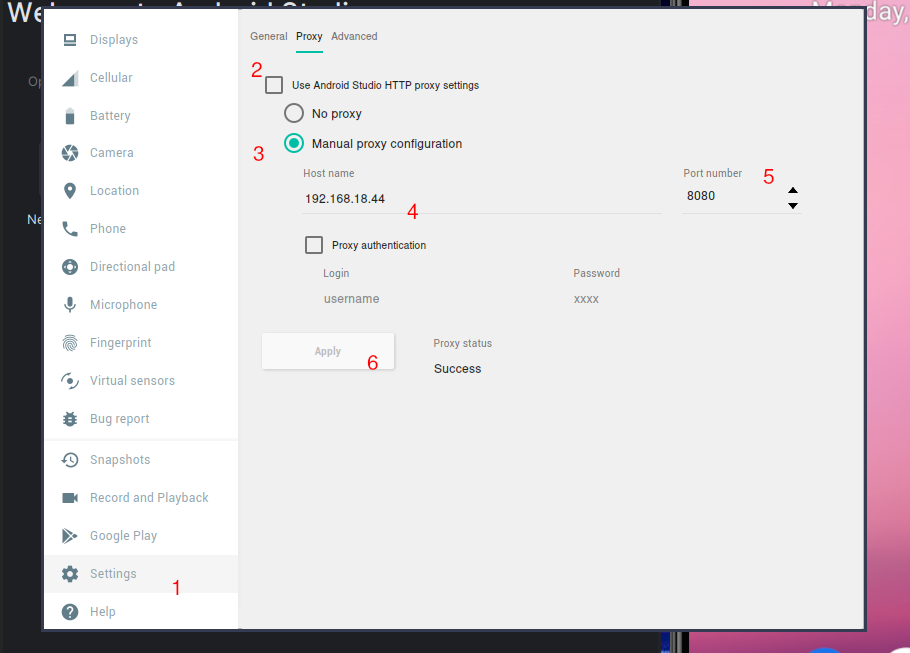

Now for intercept the traffic, we need know our ip address with ifconfig My “attacker” ip is 192.168.18.44 Then, In Android configuration in extended controls panel, we need set a manual proxy.

Follow this steps

The proxy status must be “success”. Now, run the app and put the email address with burpsuite intercepting traffic

And we get the flag

Flag: HTB{UnTrUst3d_C3rT1f1C4T3s}

I hope you found it useful (:
