AHE17 Flag Validator¶
AHE17 : Android Hacking Events 2017¶
For this challenge, probably we need install some things into our Android 5.1 device with Genymotion. For example, an ARM Translator. https://github.com/m9rco/Genymotion_ARM_Translation
For download the APK https://team-sik.org/wp-content/uploads/2017/06/FlagValidator.apk_.zip
With apktool will extract the content of the apk file
Let's see the content of MainActivity.java that say so clear the structure of the flag. In the onValidateClick method
public void onValidateClick(View view) {
new StringBuilder("Validate Token input: ").append((Object) this.input.getText());
String[] split = this.input.getText().toString().split("-");
if (split.length != 4) {
Toast.makeText(this, "Wrong token format, don't forget - between xxx !", 1).show();
} else {
a.a(split[0]);
a.b(split[1]);
a.c(split[2]);
a.d(split[3]);
}
new StringBuilder("Subparts ").append(m.cardinality());
if (m.cardinality() != 4) {
Toast.makeText(this, "Still " + (4 - m.cardinality()) + " token missing !", 1).show();
return;
}
StringBuffer stringBuffer = new StringBuffer();
stringBuffer.append(split[0]);
stringBuffer.append("-");
stringBuffer.append(split[1]);
stringBuffer.append("-");
stringBuffer.append(split[2]);
stringBuffer.append("-");
stringBuffer.append(split[3]);
new StringBuilder("Flag combined ").append(stringBuffer.toString());
if ("1017e4fefe8381aec8c3fbaf8f8148f53f81d340".equals(org.team_sik.flagvalidator.a.a.a.a.a(stringBuffer.toString(), "SHA1"))) {
AlertDialog.Builder builder = new AlertDialog.Builder(this);
builder.setMessage("Congratulation !").setCancelable(false).setPositiveButton("Yeah", new DialogInterface.OnClickListener() { // from class: org.team_sik.flagvalidator.MainActivity.1
@Override // android.content.DialogInterface.OnClickListener
public final void onClick(DialogInterface dialogInterface, int i) {
dialogInterface.dismiss();
}
});
builder.create().show();
}
}
For every part we have a different method Here is the four methods in org.team_sik.flagvalidator.a.a.b
public static void a(String str) {
if ("cHVtcjRX".equals(org.team_sik.flagvalidator.a.a.a.a.a(str))) {
MainActivity.m.set(1, true);
} else {
MainActivity.m.set(1, false);
}
}
public static void b(String str) {
if (org.team_sik.flagvalidator.a.a.a.a.a(a).equals(str)) {
MainActivity.m.set(2, true);
} else {
MainActivity.m.set(2, false);
}
}
public static void c(String str) {
try {
Field declaredField = Class.forName(org.team_sik.flagvalidator.a.a.a.a.a(new int[]{1879986099, 1260141997, 1879986140, 1260142047, -885815433, -256489066, 1879986119, 1260142024, -885815439, -256489003, 1879986156, 1260142046, -885815431, -256489005, 1879986077, 1260142027, -885815428, -256488999, 1879986132, 1260142043, -885815439, -256489004, 1879986138, 1260142025, -885815439, -256489012, 1879986140, 1260142047, -885815490, -256488971, 1879986130, 1260142020, -885815426, -256488967, 1879986128, 1260142041, -885815431, -256489010, 1879986138, 1260142041, -885815447, -885815536, -256489032})).getDeclaredField("TOKEN2");
declaredField.setAccessible(true);
new StringBuilder("Flag value ").append((String) declaredField.get(new MainActivity()));
if (((String) declaredField.get(new MainActivity())).equals(str)) {
MainActivity.m.set(3, true);
} else {
MainActivity.m.set(3, false);
}
} catch (ClassNotFoundException e) {
Log.e("VAL", "Something went wrong :-(");
} catch (IllegalAccessException e2) {
Log.e("VAL", "Something went wrong :-(");
} catch (NoSuchFieldException e3) {
Log.e("VAL", "Something went wrong :-(");
}
}
public static void d(String str) {
if ("af246d4dacd2f683ff850dcfe465562f".equals(org.team_sik.flagvalidator.a.a.a.a.a(str, "MD5"))) {
MainActivity.m.set(4, true);
} else {
MainActivity.m.set(4, false);
}
}
Method 1¶
public static void a(String str) {
if ("cHVtcjRX".equals(org.team_sik.flagvalidator.a.a.a.a.a(str))) {
MainActivity.m.set(1, true);
} else {
MainActivity.m.set(1, false);
}
}
We have the string cHVtcjRX That have this logic
public static String a(String str) {
String sb = new StringBuilder(str).reverse().toString();
String str2 = "";
try {
str2 = Base64.encodeToString(sb.getBytes("utf-8"), 2);
} catch (UnsupportedEncodingException e) {
e.printStackTrace();
}
return str2;
}
This about an base64 encode and reversed.
Output: W4rmup
Method 2¶
public static void b(String str) {
if (org.team_sik.flagvalidator.a.a.a.a.a(a).equals(str)) {
MainActivity.m.set(2, true);
} else {
MainActivity.m.set(2, false);
}
}
And this is the logic
public static String a(int[] iArr) {
StringBuilder sb = new StringBuilder();
int i = iArr[0];
int i2 = iArr[1];
int i3 = iArr[iArr.length - 2];
int i4 = iArr[iArr.length - 1];
for (int i5 = 2; i5 < iArr.length - 2; i5++) {
sb.append((char) (iArr[i5] ^ new int[]{i, i2, i3, i4}[(i5 - 2) % 4]));
}
return sb.toString();
}
There are another value of a which is
private static final int[] a = {-1602723372, 811074983, -1602723401, 811075023, -949198329, 1053776347, -1602723400, 811074964, -949198243, 1053776336, -1602723353, -949198285, 1053776311};
This is a simple logic in java working with array. We can do an python script that do the same job an get a fast output
#!/usr/bin/env python3
def a(iArr):
sb = []
i = iArr[0]
i2 = iArr[1]
i3 = iArr[-2]
i4 = iArr[-1]
for i5 in range(2, len(iArr) - 2):
decoded_char = chr(iArr[i5] ^ [i, i2, i3, i4][(i5 - 2) % 4])
sb.append(decoded_char)
return ''.join(sb)
iArr = [-1602723372, 811074983, -1602723401, 811075023, -949198329, 1053776347,
-1602723400, 811074964, -949198243, 1053776336, -1602723353, -949198285, 1053776311]
final = a(iArr)
print(final)
Output: ch4ll3ng3
Method 3¶
public static void c(String str) {
try {
Field declaredField = Class.forName(org.team_sik.flagvalidator.a.a.a.a.a(new int[]{1879986099, 1260141997, 1879986140, 1260142047, -885815433, -256489066, 1879986119, 1260142024, -885815439, -256489003, 1879986156, 1260142046, -885815431, -256489005, 1879986077, 1260142027, -885815428, -256488999, 1879986132, 1260142043, -885815439, -256489004, 1879986138, 1260142025, -885815439, -256489012, 1879986140, 1260142047, -885815490, -256488971, 1879986130, 1260142020, -885815426, -256488967, 1879986128, 1260142041, -885815431, -256489010, 1879986138, 1260142041, -885815447, -885815536, -256489032})).getDeclaredField("TOKEN2");
declaredField.setAccessible(true);
new StringBuilder("Flag value ").append((String) declaredField.get(new MainActivity()));
if (((String) declaredField.get(new MainActivity())).equals(str)) {
MainActivity.m.set(3, true);
} else {
MainActivity.m.set(3, false);
}
} catch (ClassNotFoundException e) {
Log.e("VAL", "Something went wrong :-(");
} catch (IllegalAccessException e2) {
Log.e("VAL", "Something went wrong :-(");
} catch (NoSuchFieldException e3) {
Log.e("VAL", "Something went wrong :-(");
}
}
In the MainActivity.java we can see TOKEN2
public class MainActivity extends d {
public static BitSet m;
private String TAG = getClass().getSimpleName();
private String TOKEN2 = value();
private EditText input;
static {
System.loadLibrary("native-lib");
m = new BitSet(4);
}
And value() is

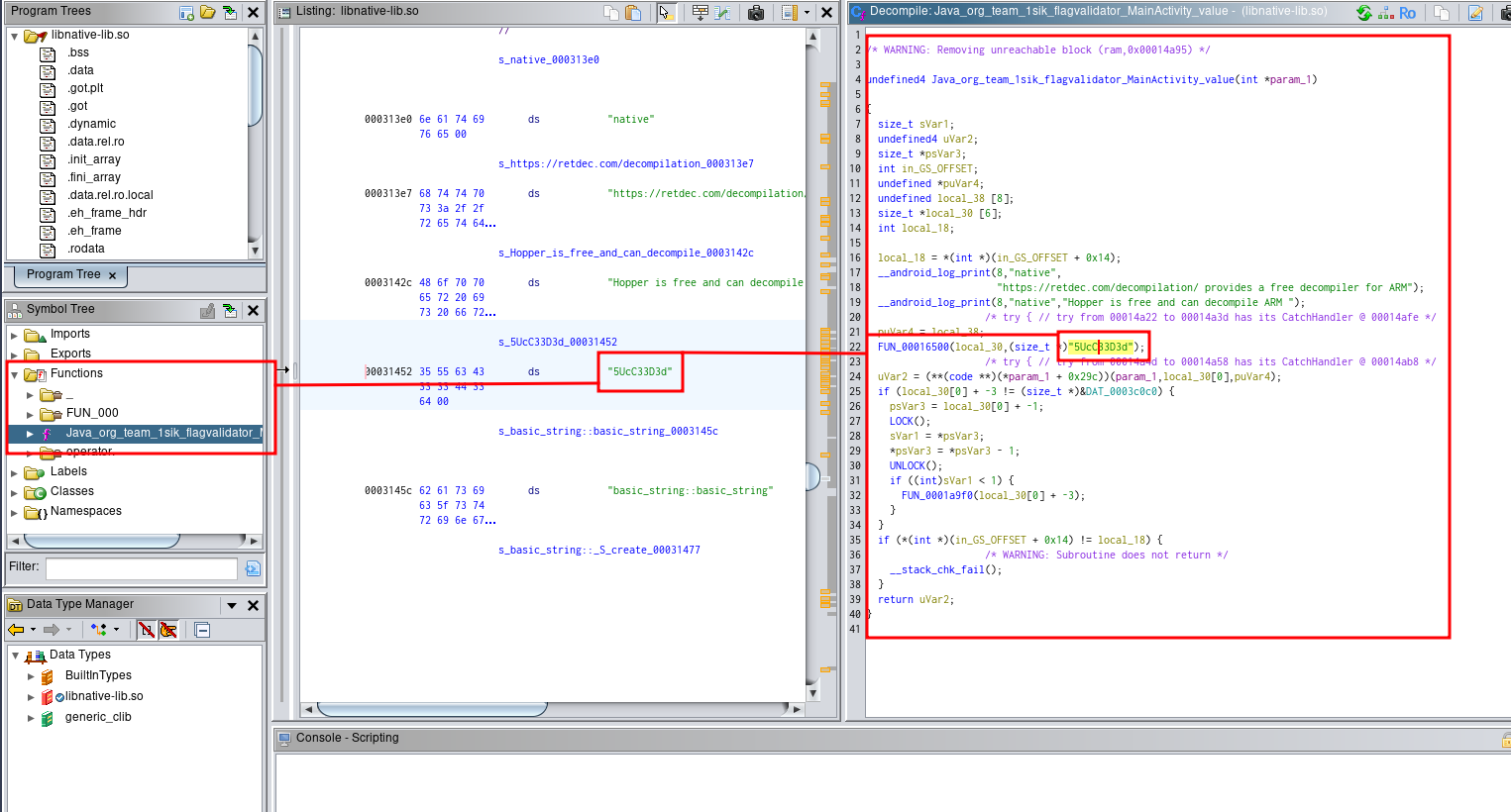

An string of the native libraries. Let's use ghidra for see the libraries and what we can found inside. I'll use this .so file
The third flag is 5UcC33D3d
Method 4¶
public static void d(String str) {
if ("af246d4dacd2f683ff850dcfe465562f".equals(org.team_sik.flagvalidator.a.a.a.a.a(str, "MD5"))) {
MainActivity.m.set(4, true);
} else {
MainActivity.m.set(4, false);
}
}
This MD5 is so broke. You can find in crackstation the string according to the MD5 value
Value: continue1
Then the final flag looks like W4rmup-ch4ll3ng3-5UcC33D3d-continue1

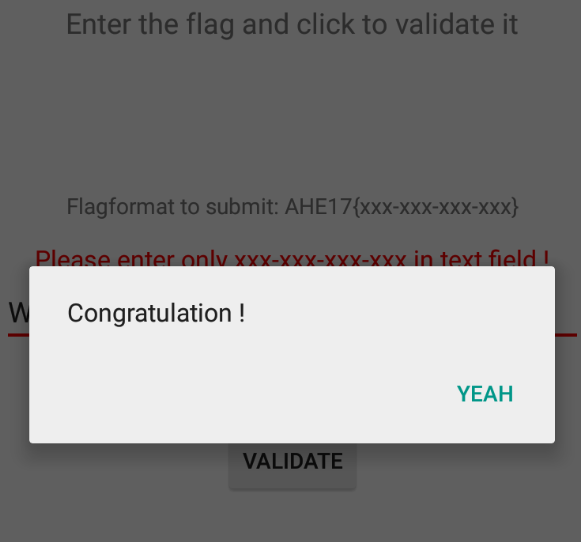

Just insert in the text box and
I hope you found it useful (:
