8kSec - FreeFallGame¶

Description: Experience the thrill of FreeFall, an addictive iOS ball game that challenges your reflexes and precision! Navigate a fast-moving ball through obstacles using intuitive paddle controls and all under a 60-second time limit.

Link: https://academy.8ksec.io/course/ios-application-exploitation-challenges

Install an IPA file can be difficult. So, for make it more easy, I made a YouTube video with the process using Sideloadly. LINK: https://www.youtube.com/watch?v=YPpo9owRKGE

Once you have the app installed, let's proceed with the challenge. unzip the .ipa file.

Recon¶

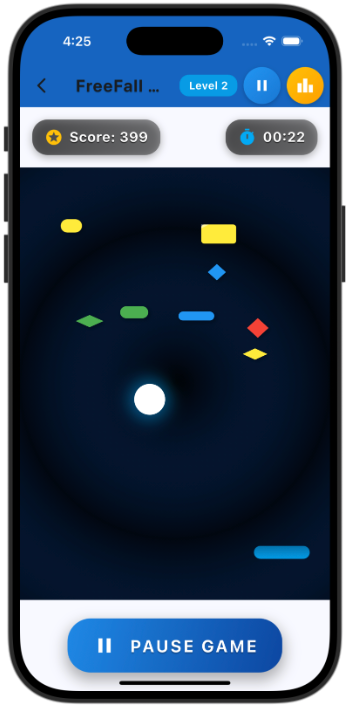

We are facing an arcade game, which if we look inside Payload/Runner.app we can notice that we are dealing with a flutter app.

So, in first place, we need use reFlutter.

reFlutter is a tool for decompiling and rebuilding Flutter apps:

• The Flutter app on iOS compiles the entire Dart file into the App.framework/App (Mach-O binary).

• What reFlutter does is extract and disassemble those sections, reconstructing the Dart AOT snapshots into readable Dart pseudo-code.

• It allows you to reverse engineer Flutter logic into an API, just like on Android: internal paths, validations, strings, endpoints, debug flags, etc.

• The difference is that on iOS, the binary is in Mach-O, not in ELF like Android (libapp.so).

Install reFlutter using pip

pip3 install reflutter

reflutter 1-FreeFall.ipa

Install using sideloadly the new file (uninstalling the original version before).

And then, using ssh on our iPhone will need find the dump.dart file.

iPhoneHack:/var/mobile/Containers/Data/Application root# ls -l /var/mobile/Containers/Data/Application/

find /var/mobile/Containers/Data/Application/ -name "*.plist" | grep -i Free

Inside of Documents directory, you will find the dump.dart file:

iPhoneHack:/var/mobile/Containers/Data/Application/C402751A-E920-41A5-8EEF-2DE3BF9A4007/Documents root# ls
dump.dart  freefallgame.db  security_tokens.db

Let's use scp for file transfer:

scp root@192.168.0.248:/var/mobile/Containers/Data/Application/C402751A-E920-41A5-8EEF-2DE3BF9A4007/Documents/dump.dart .

I found the method submitScore from GameEngine class.

{"method_name":"submitScore","offset":"0x0000000000171f10","library_url":"package:freefallgame\/game_engine.dart","class_name":"GameEngine"}

Also, among the important Flutter functions:

• Leaderboard.submitScore(score)

• GameEngine._score

• GameEngine._submitScore() — relevant, seems to be the final internal

• LeaderboardDatabase.insert() — SQL logic with token and score

• Flutter bindings: FlutterMethodCall, FlutterMethodChannel

This pattern suggests a Flutter → ObjC → SQLite → Backend encapsulation.

Anyway, I decide work with +[FlutterMethodCall methodCallWithMethodName:arguments:].

• The + indicates that it's a class method (not an instance method). That is, it can be called directly on the FlutterMethodCall class and not on a created object.

• The methodCallWithMethodName:arguments: signature is a constructor/factory method that creates an instance of FlutterMethodCall from:

  • methodName → the name of the Flutter method being called.

  • arguments → the associated arguments.

So, in the practice:

• Flutter uses FlutterMethodChannel when communicating between Dart and iOS (Objective-C/Swift).

• Each invocation on the Dart side is translated into a FlutterMethodCall object on iOS.

• This class method constructs that object, packaging the name and args in a form that the MethodChannel can dispatch to the native handler.

So, when you trace it with Frida, hooking +[FlutterMethodCall methodCallWithMethodName:arguments:] lets you see all the calls Flutter sends to the native iOS side: the method names and their raw arguments.

It's a strategic hook point for inspecting or manipulating the communication layer between Dart and the native bridge.

Let's hook!

frida-trace -U -f com.eightksec.freefallgame.YX4C7J2RLK -m '+[FlutterMethodCall methodCallWithMethodName:arguments:]'

And, a file is autogenerated by Frida:

• __handlers__/FlutterMethodCall/methodCallWithMethodName_arguments_.js

Let's modify that for get more context and information:

Just modify the methodCallWithMethodName_arguments_.js file and put this JavaScript code:

defineHandler({
  onEnter: function (log, args, state) {
    try {
      var methodName = new ObjC.Object(args[2]).toString();   // NSString*
      var dict       = new ObjC.Object(args[3]);              // NSDictionary*
      log("method=" + methodName);
      log("args=" + dict.toString());
      var arr = dict.objectForKey_("arguments");
      if (arr) log("arguments=" + arr.toString());
    } catch (e) { log("ERR " + e); }
  },

  onLeave: function (log, retval, state) { }
});

Now if we running again the frida-trace command, when you submit the score:

/* TID 0x6a07 */
 92185 ms  method=openDatabase
 92185 ms  args={
    path = "/var/mobile/Containers/Data/Application/A67DB2A3-E846-40B5-AA10-B6B60B75254B/Documents/security_tokens.db";
    singleInstance = 1;
}
 92188 ms  method=query
 92188 ms  args={
    id = 3;
    sql = "PRAGMA user_version";
}
 92190 ms  method=query
 92190 ms  args={
    arguments =     (
        1758461569262
    );
    id = 3;
    sql = "SELECT * FROM tokens WHERE expiry > ? LIMIT 1";
}
 92190 ms  arguments=(
    1758461569262
)
           /* TID 0x32f3 */
 92192 ms  method=closeDatabase
 92192 ms  args={
    id = 3;
}
 92196 ms  method=openDatabase
 92196 ms  args={
    path = "/var/mobile/Containers/Data/Application/A67DB2A3-E846-40B5-AA10-B6B60B75254B/Documents/security_tokens.db";
    singleInstance = 1;
}
 92197 ms  method=query
 92197 ms  args={
    id = 4;
    sql = "PRAGMA user_version";
}
 92198 ms  method=query
 92198 ms  args={
    arguments =     (
        1758461569270
    );
    id = 4;
    sql = "SELECT * FROM tokens WHERE expiry > ? LIMIT 1";
}
 92198 ms  arguments=(
    1758461569270
)
 92200 ms  method=closeDatabase
 92200 ms  args={
    id = 4;
}
 92201 ms  method=openDatabase
 92201 ms  args={
    path = "/var/mobile/Containers/Data/Application/A67DB2A3-E846-40B5-AA10-B6B60B75254B/Documents/security_tokens.db";
    singleInstance = 1;
}
 92202 ms  method=query
 92202 ms  args={
    id = 5;
    sql = "PRAGMA user_version";
}
 92203 ms  method=query
 92203 ms  args={
    arguments =     (
        5d9670b4e79f841111dec8ba52d1e33f0053c9c277b4692b8f8facd780727208,
        1758461569275
    );
    id = 5;
    sql = "SELECT * FROM tokens WHERE token = ? AND expiry > ?";
}
 92203 ms  arguments=(
    5d9670b4e79f841111dec8ba52d1e33f0053c9c277b4692b8f8facd780727208,
    1758461569275
)
 92205 ms  method=closeDatabase
 92205 ms  args={
    id = 5;
}
 92206 ms  method=insert
 92206 ms  args={
    arguments =     (
        test2,
        720,
        1758461569278,
        5d9670b4e79f841111dec8ba52d1e33f0053c9c277b4692b8f8facd780727208
    );
    id = 2;
    sql = "INSERT INTO leaderboard (name, score, timestamp, token) VALUES (?, ?, ?, ?)";
}
 92206 ms  arguments=(
    test2,
    720,
    1758461569278,
    5d9670b4e79f841111dec8ba52d1e33f0053c9c277b4692b8f8facd780727208
)
           /* TID 0x6a07 */
 92216 ms  method=query
 92216 ms  args={
    id = 2;
    sql = "SELECT * FROM leaderboard";
}
           /* TID 0x103 */
 92218 ms  method=read
 92218 ms  args={
    key = "db_encryption_key";
    options =     {
        accessibility = unlocked;
        accountName = "flutter_secure_storage_service";
        synchronizable = false;
    };
}
 92220 ms  method=write
 92220 ms  args={
    key = "db_signature";
    options =     {
        accessibility = unlocked;
        accountName = "flutter_secure_storage_service";
        synchronizable = false;
    };
    value = 6064ad2b75dfa8144654071ef2149e313d2a93df6ed2c47c89963152d3fe0545;
}
 92228 ms  method=TextInput.clearClient
 92228 ms  args=nil
 92228 ms  ERR TypeError: not a function
 92229 ms  method=TextInput.hide
 92229 ms  args=nil
 92229 ms  ERR TypeError: not a function
 92234 ms  method=TextInputClient.onConnectionClosed
 92234 ms  args=(
    0
)
 92234 ms  ERR TypeError: not a function
           /* TID 0x32f3 */
 92244 ms  method=query
 92244 ms  args={
    id = 2;
    sql = "SELECT * FROM leaderboard ORDER BY score DESC LIMIT 20";
}

We can see that the application performs a series of SQL operations with the files we previously found in the Documents directory (where we extracted the dump.dart).

Score flow¶

1. The player taps the screen to keep the ball in the air.

2. Each collision with an obstacle adds X point.

3. The GameEngine maintains a _score property, which is incremented locally.

4. When the* game ends*, the _submitScore() function is called.

5. The score information is serialized and sent as a FlutterMethodCall with the insert method.

6. In Objective-C (iOS), this method calls +[FlutterMethodCall methodCallWithMethodName:arguments:].

7. An SQL call is constructed with the following parameters:

   INSERT INTO leaderboard (name, score, timestamp, token)


   Where score is index 1 of the "arguments" array.

In the frida-server output we can check that:

92206 ms  method=insert
 92206 ms  args={
    arguments =     (
        test2,
        720,
        1758461569278,
        5d9670b4e79f841111dec8ba52d1e33f0053c9c277b4692b8f8facd780727208
    );
    id = 2;
    sql = "INSERT INTO leaderboard (name, score, timestamp, token) VALUES (?, ?, ?, ?)";
}
 92206 ms  arguments=(
    test2,
    720,
    1758461569278,
    5d9670b4e79f841111dec8ba52d1e33f0053c9c277b4692b8f8facd780727208
)

PoC¶

What's the objective? Intercept +[FlutterMethodCall methodCallWithMethodName:arguments:] and overwrite the score value before it is serialized to SQLite.

'use strict';

const NSNumber = ObjC.classes.NSNumber;
const NSMutableArray = ObjC.classes.NSMutableArray;
const FlutterMethodCall = ObjC.classes.FlutterMethodCall;
const method = FlutterMethodCall["+ methodCallWithMethodName:arguments:"];

Interceptor.attach(method.implementation, {
  onEnter(args) {
    try {
      const methodName = ObjC.Object(args[2]).toString();
      if (methodName !== "insert") return;

      const originalDict = ObjC.Object(args[3]);
      const modifiedArgs = NSMutableArray.array();
      const values = originalDict.objectForKey_("arguments");

      for (let i = 0; i < values.count(); i++) {
        const item = values.objectAtIndex_(i);
        modifiedArgs.addObject_(i === 1 ? NSNumber.numberWithInt_(13371337) : item);
      }

      const mutable = originalDict.mutableCopy();
      mutable.setObject_forKey_(modifiedArgs, "arguments");
      args[3] = mutable;
    } catch (_) {}
  }
});

So, Its method + methodCallWithMethodName:arguments: is invoked just before the "insert" method call.

• We intercept this method to:

  • Read the original dictionary (NSDictionary).

  • Replace index 1 (score) with NSNumber.numberWithInt_(13371337).

  • Inject the modified dictionary into args[3].

This happens before any serialization, meaning the DB and backend receive a valid but altered score.

• NSDictionary / NSMutableDictionary: Foundation's immutable/mutable dictionary.

• NSMutableArray: Objective-C dynamic array.

• NSNumber: Wrapper for primitive types such as int, float, etc. Necessary to maintain type integrity when injecting the new score.

• ObjC.Object(args[n]): Frida API that allows you to convert a native pointer to an Objective-C object for inspection or modification.

So, launch the app with the PoC script:

frida -U -f com.eightksec.freefallgame.YX4C7J2RLK -l hookGame.js

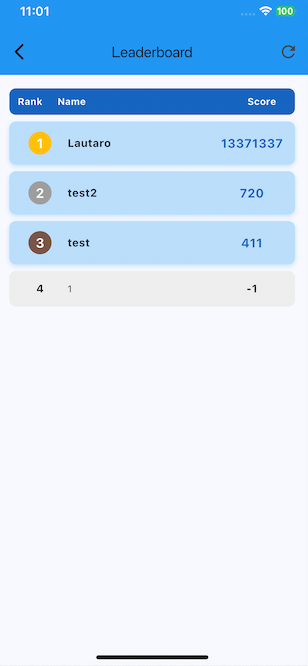

You can also set -1 as score, just because 8kSec mention as goal:

• submit arbitrary scores that would be impossible to achieve through normal play

I hope you found it useful (:
